The CDI Base Canopy 1800mm – Full Access Jack-off is built for ute owners who need secure, full-access storage with the flexibility to remove the canopy when full tray capacity is required. Designed for flat tray decks without a raised lip, its flush-mount base delivers a cleaner, more integrated finish and is compatible with 40 × 40 jack-off legs.

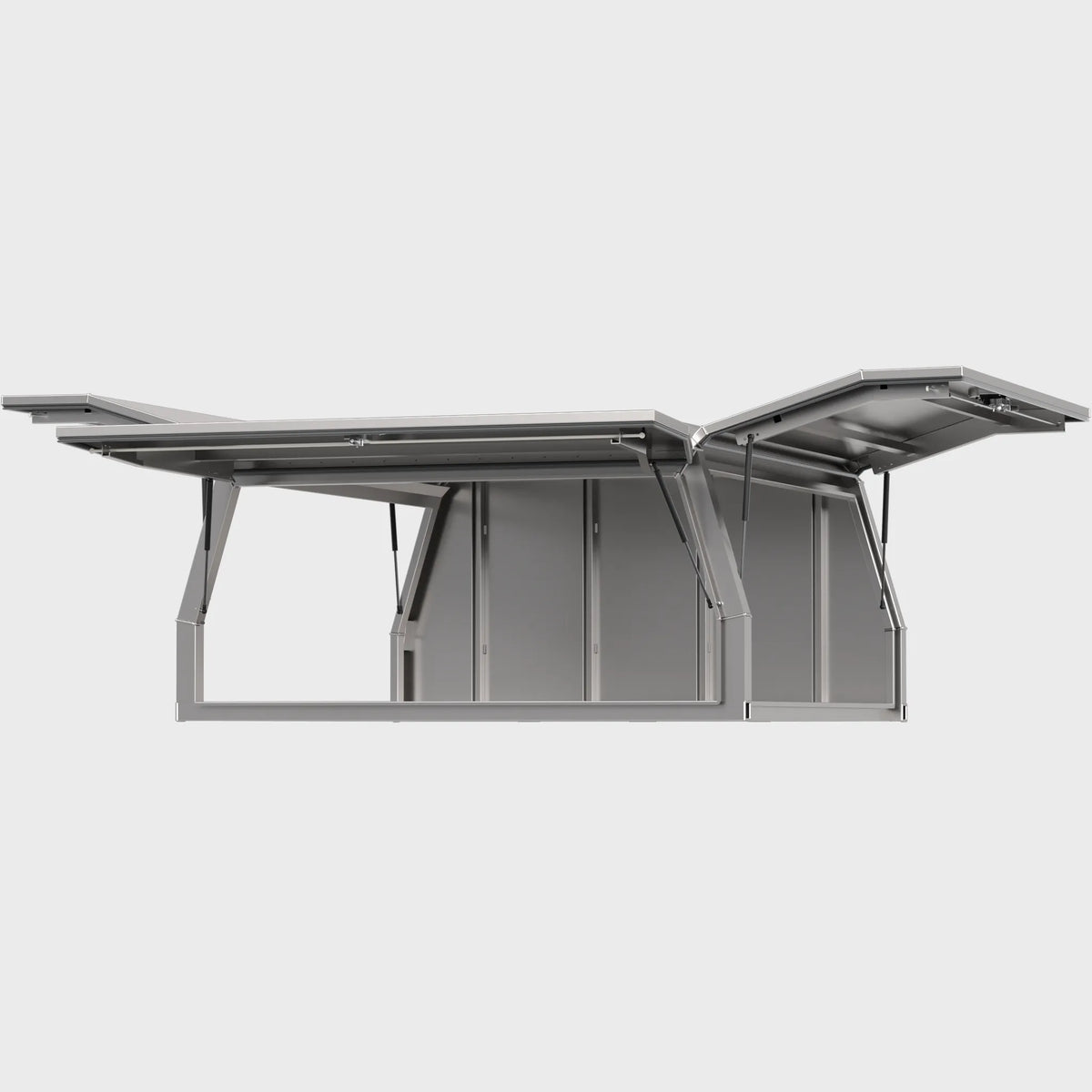

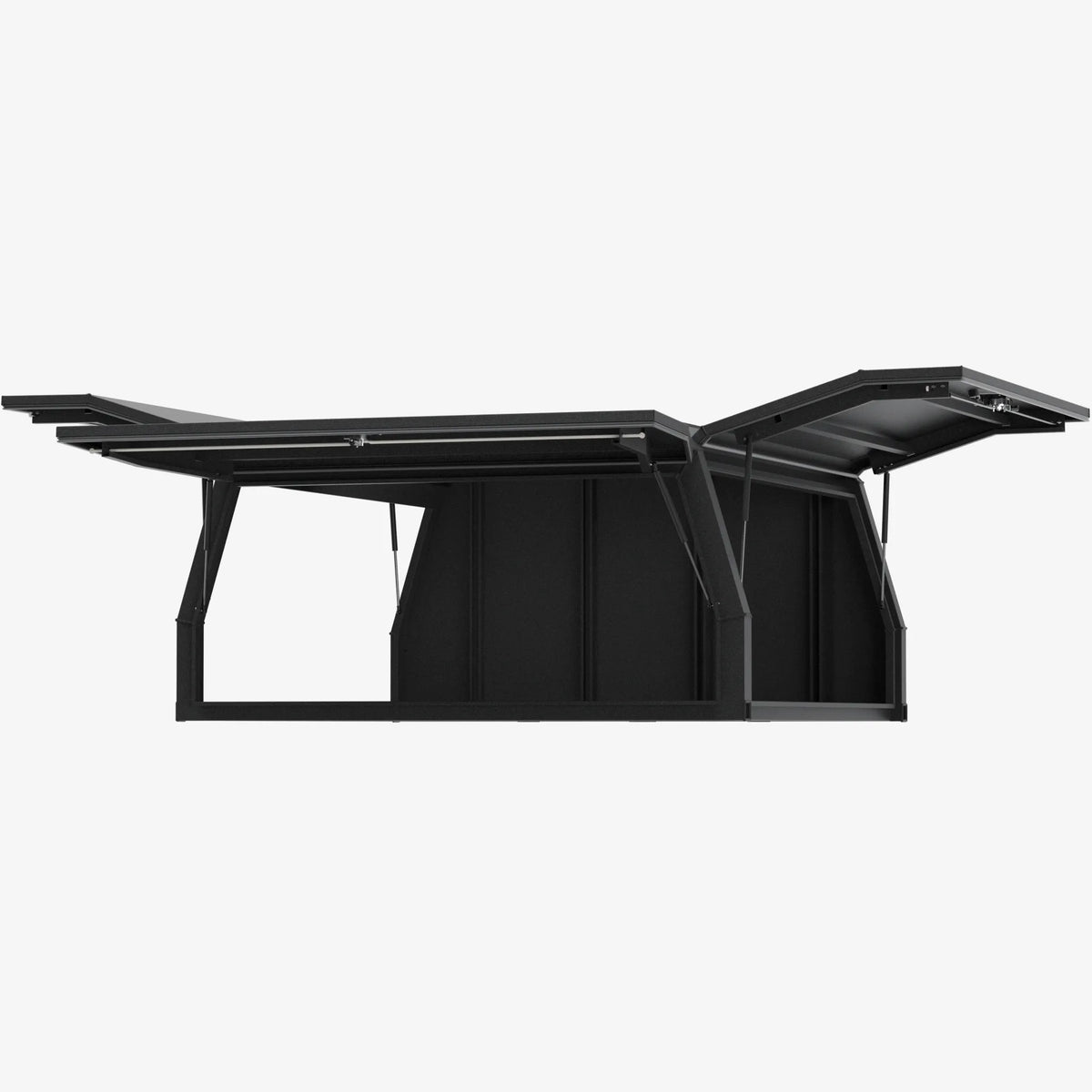

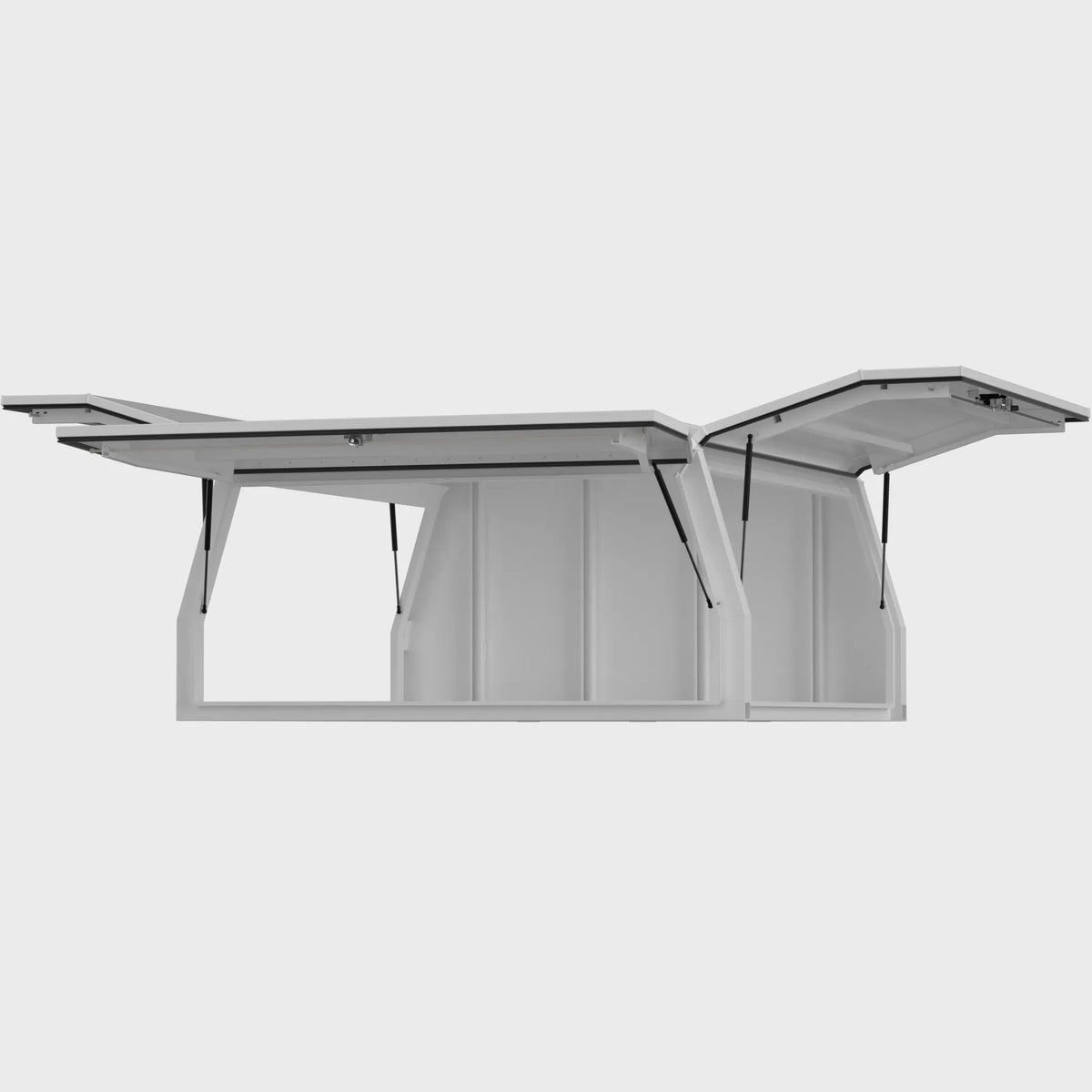

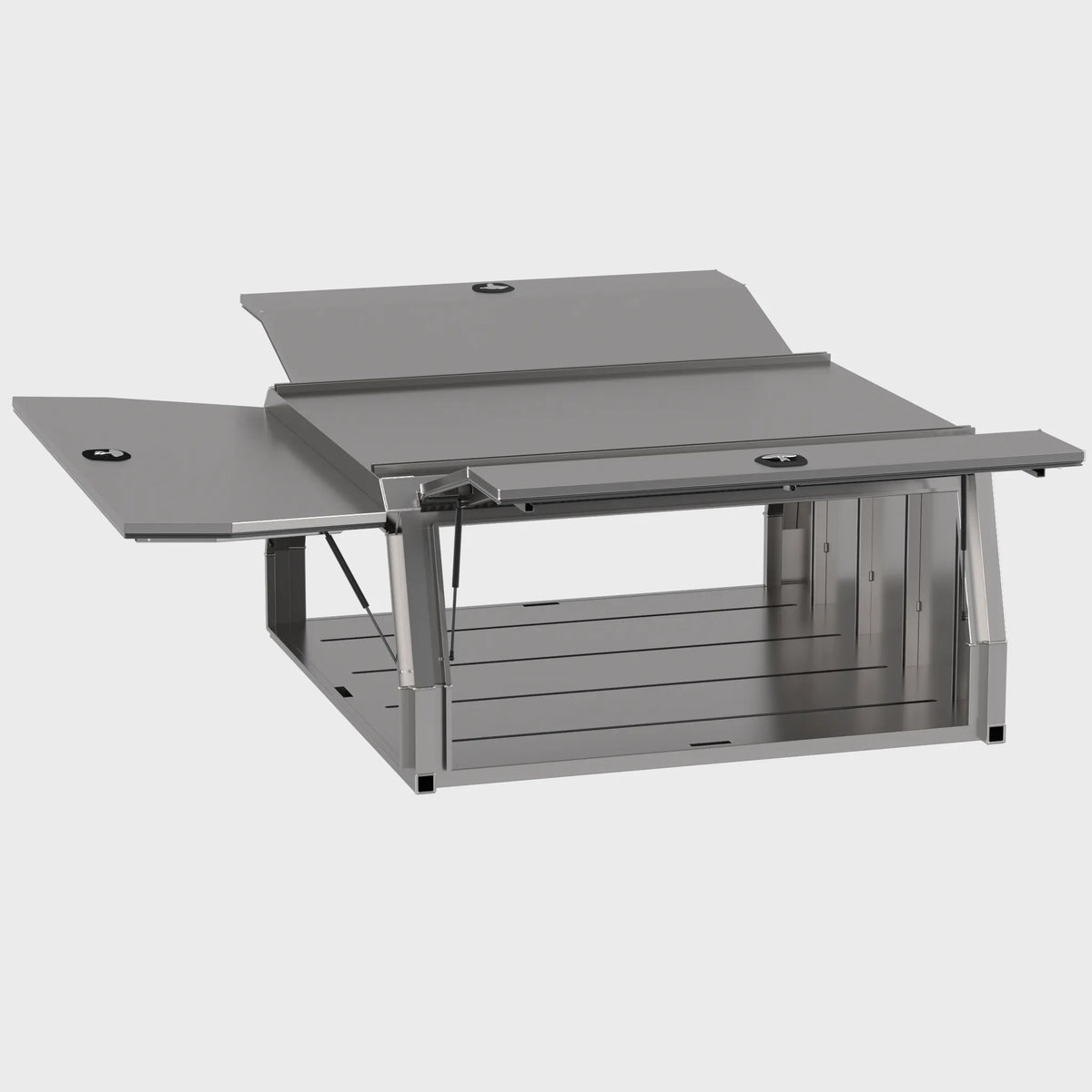

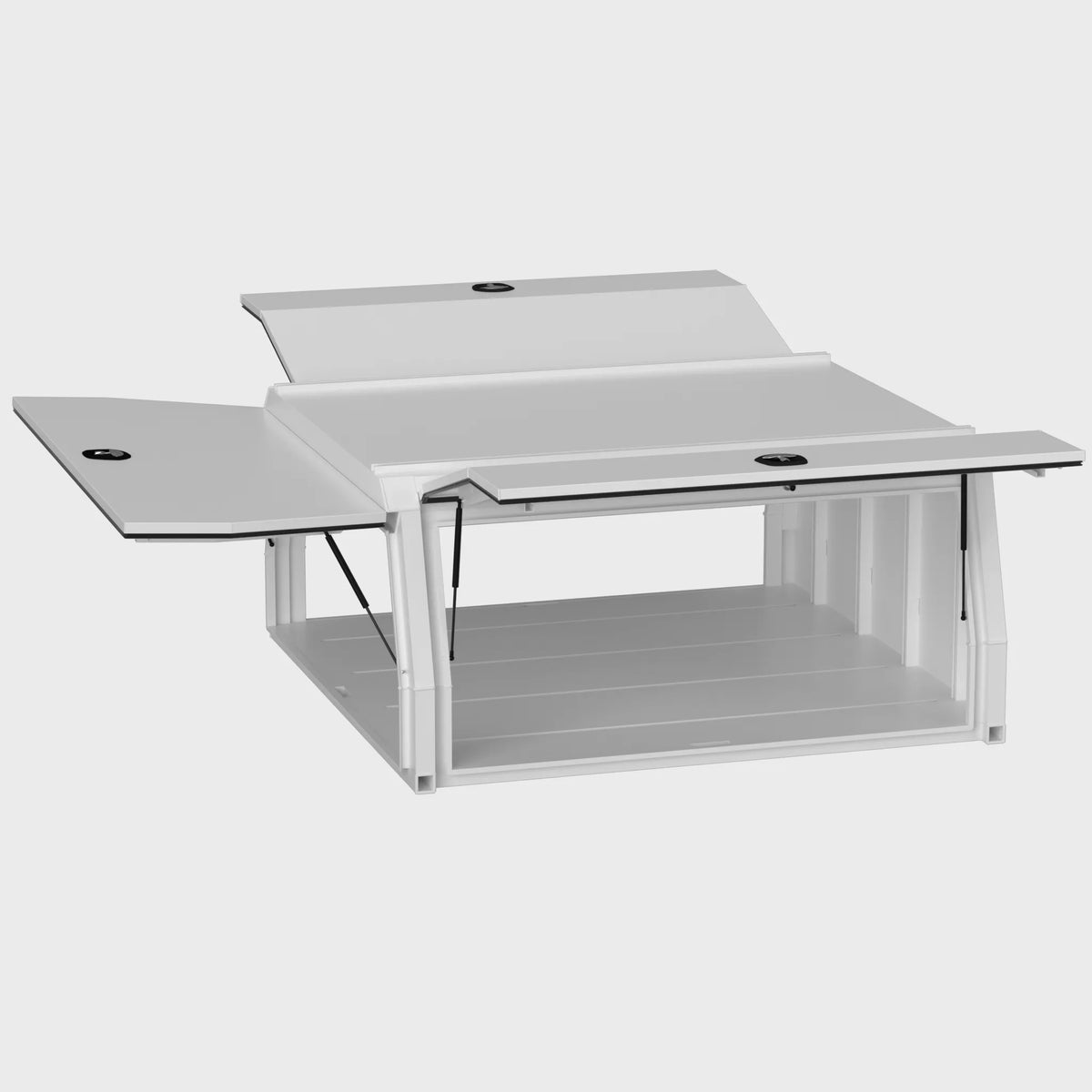

The three-door Full Access layout retains dual side doors and a full-width rear door for practical access to tools, drawers and gear from all sides. The doors extend down to the canopy base, removing the exposed lower lip of a conventional canopy for a cleaner profile. A retained upper rear header maintains structural strength while providing a practical mounting area for a high-mounted brake light or rear spoiler.

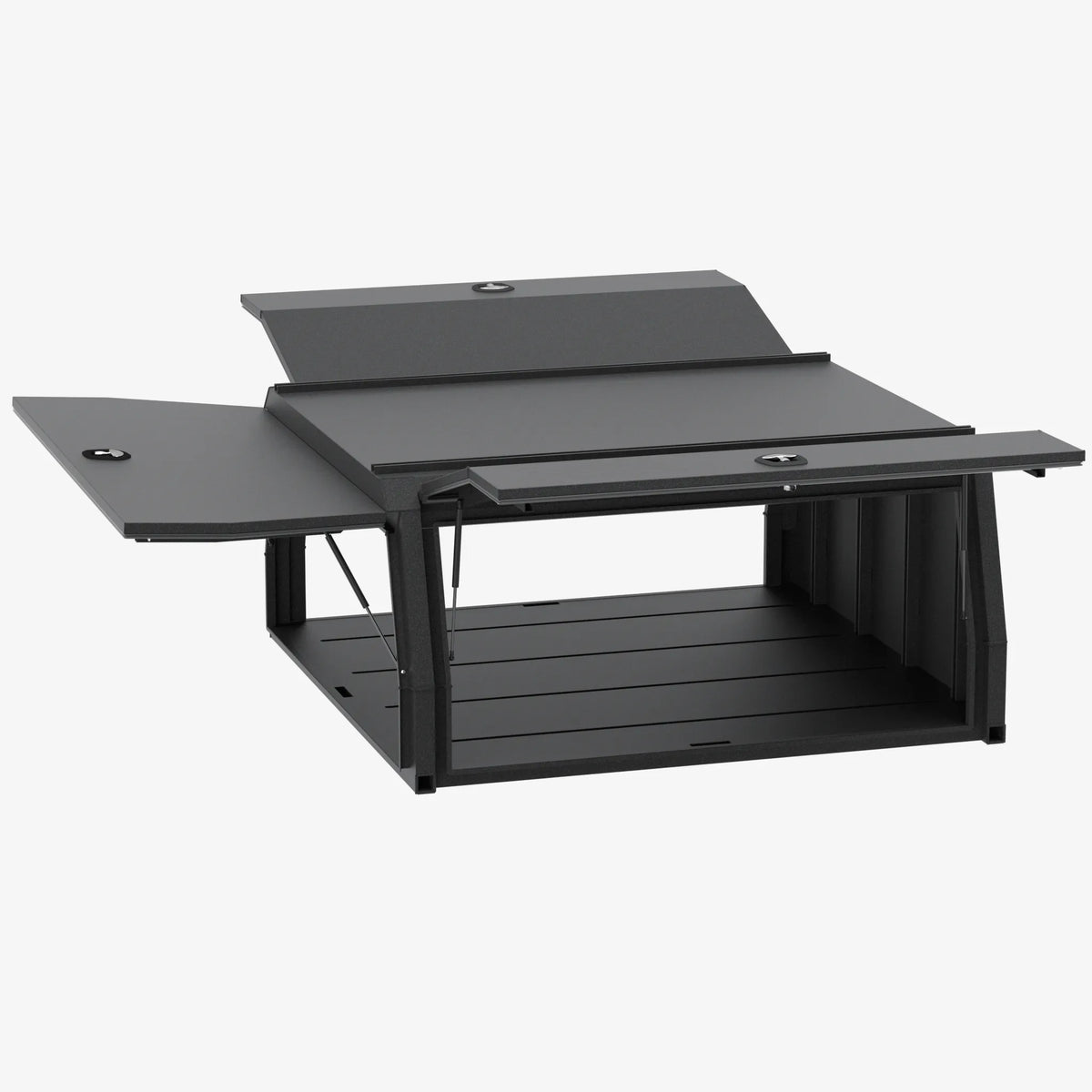

Built from 2.5mm 5052 aluminium plate with a reinforced internal frame, stainless-steel piano hinges and secure whale-tail locks, it is made for work, touring and everyday use. The raised false floor features recessed rails for no-drill internal fit-outs using spring nuts, while welded low-profile 22 × 41 roof C-channels provide mounting provision for compatible roof racks, tie-down rings and accessories.
| Standard inclusions | Canopy Body 2 Keys per Lock Set |
|---|---|
| Material | Canopy Panels: 2.5mm 5052 Aluminium Flat Plate Internal Frame: 41-38C 6061 Aluminium Extrusion Perimeter Frame: 38mm x 38mm 6061 Aluminium Tube |
| Weight | 144.0kg |
| External dimensions | Width: 1775mm Length: 1800mm Height: 850mm Side Entry Width: 1544mm Rear Entry Width: 1624mm Rear Entry Height: 638mm |
| Internal dimensions | Internal Height: 755mm (floor to top channel) |

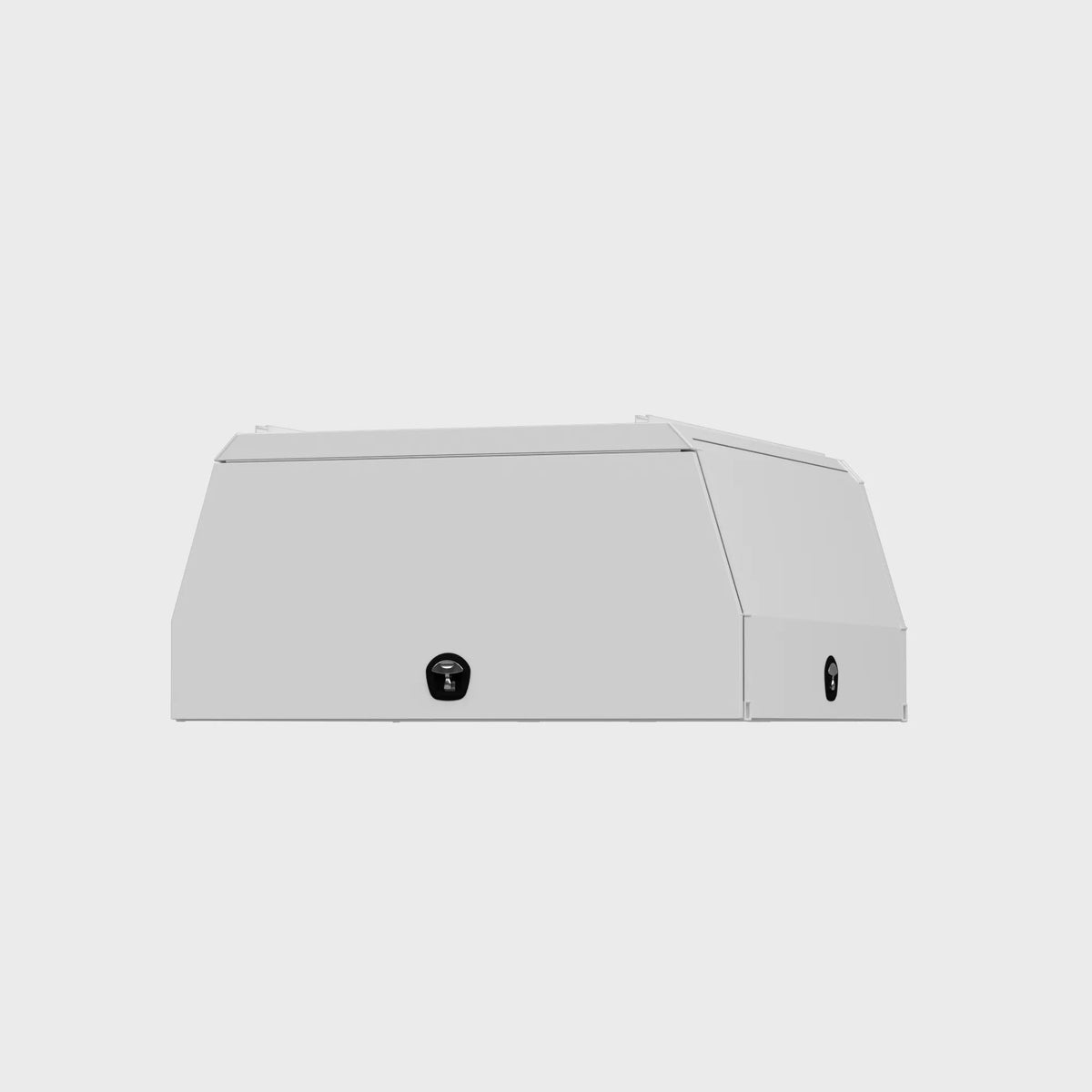

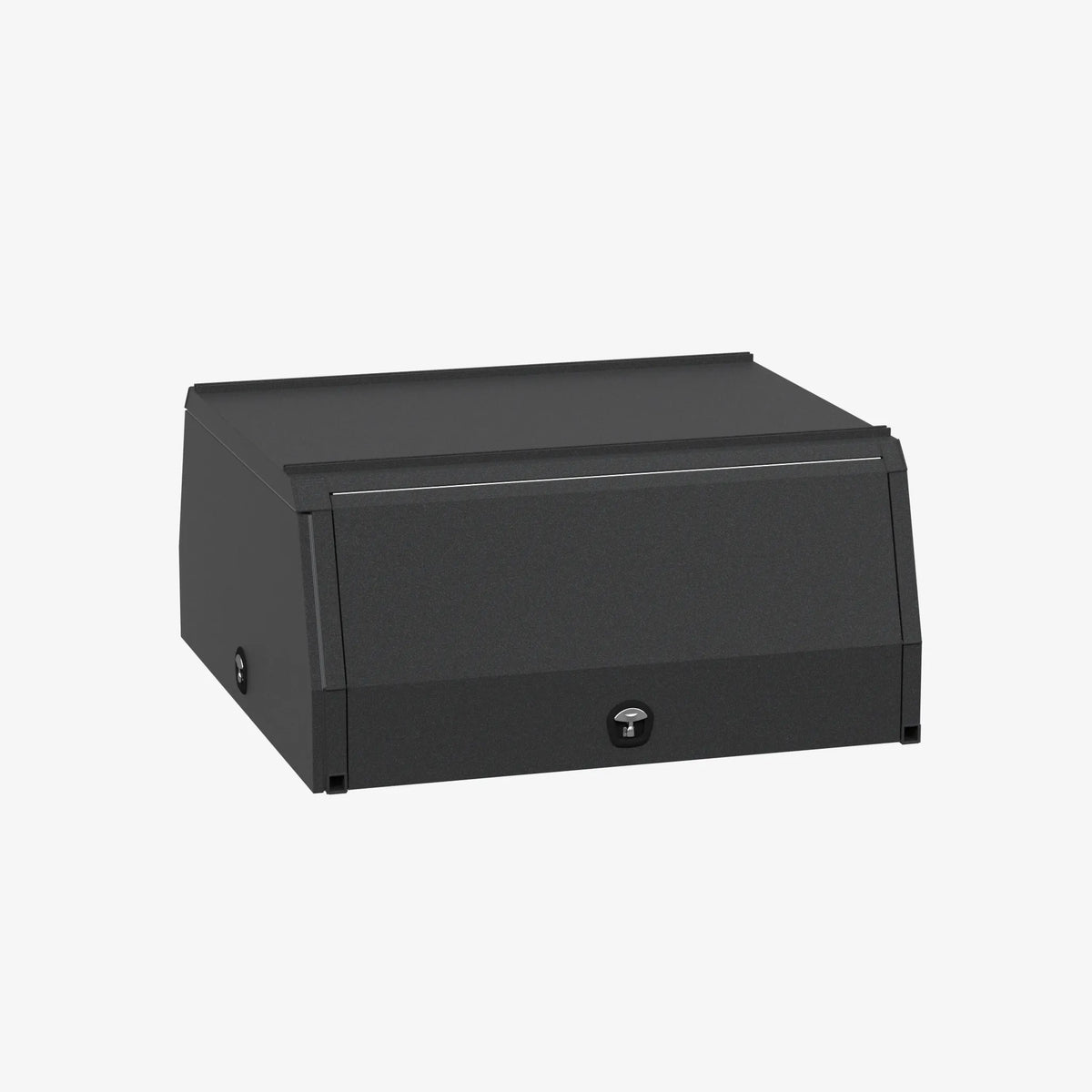

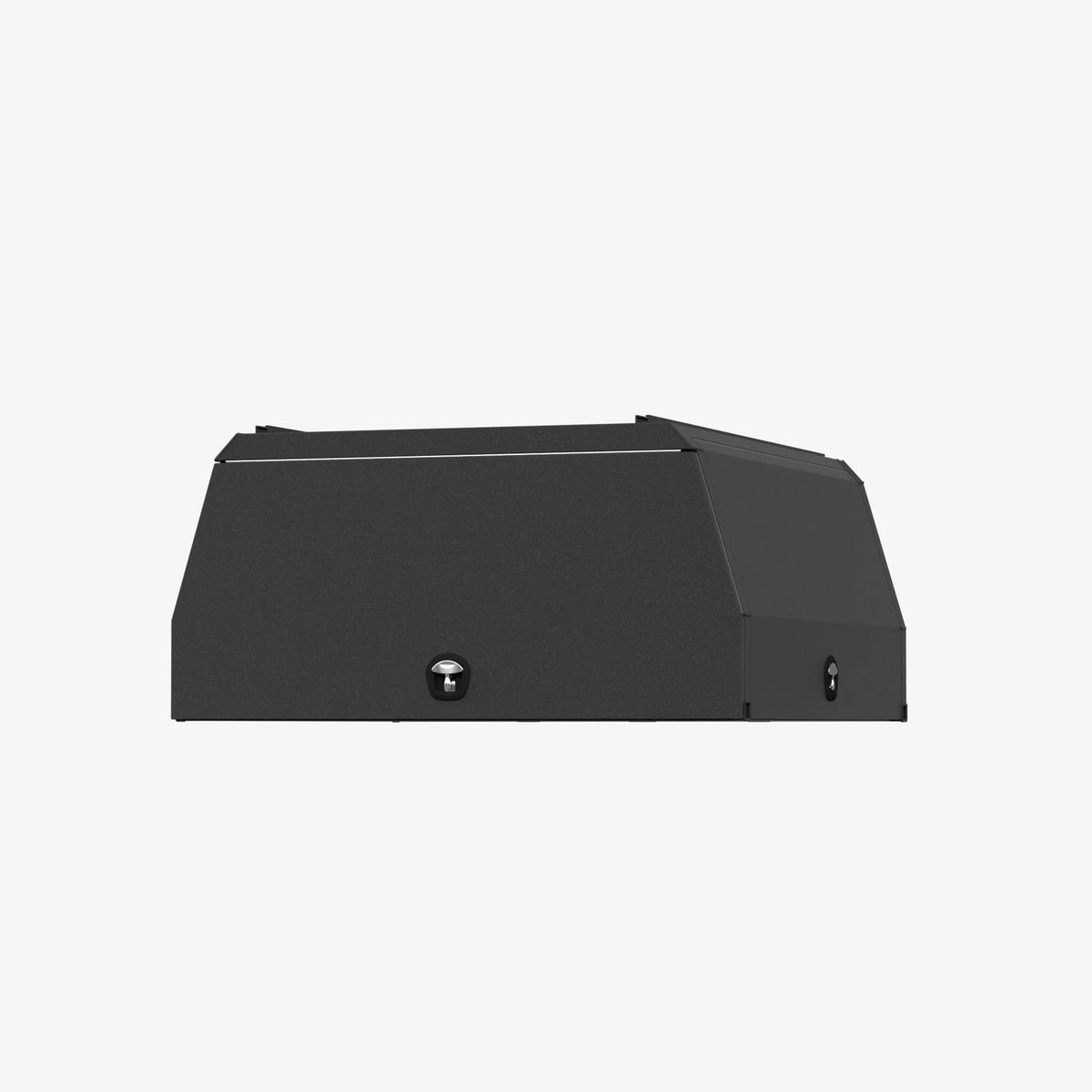

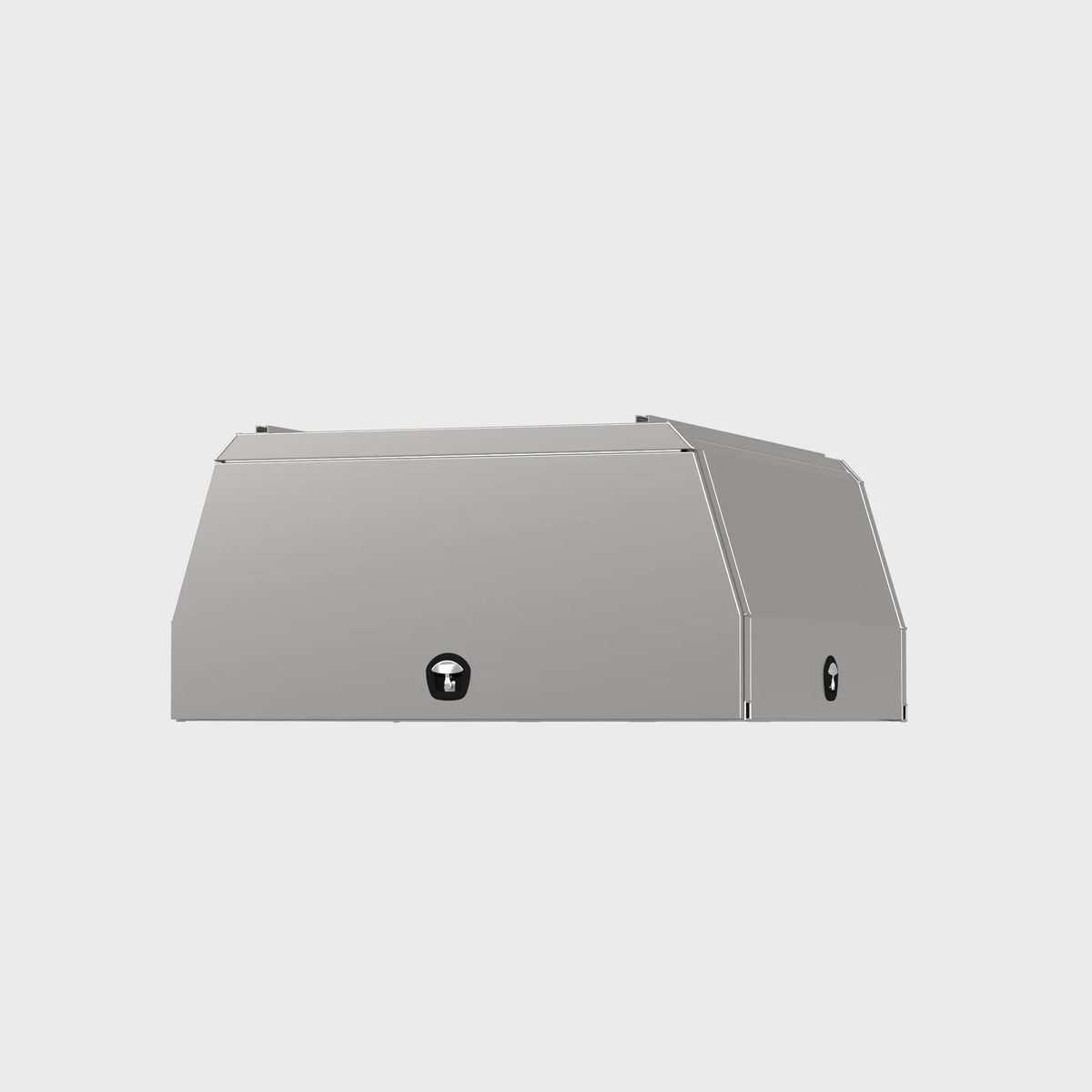

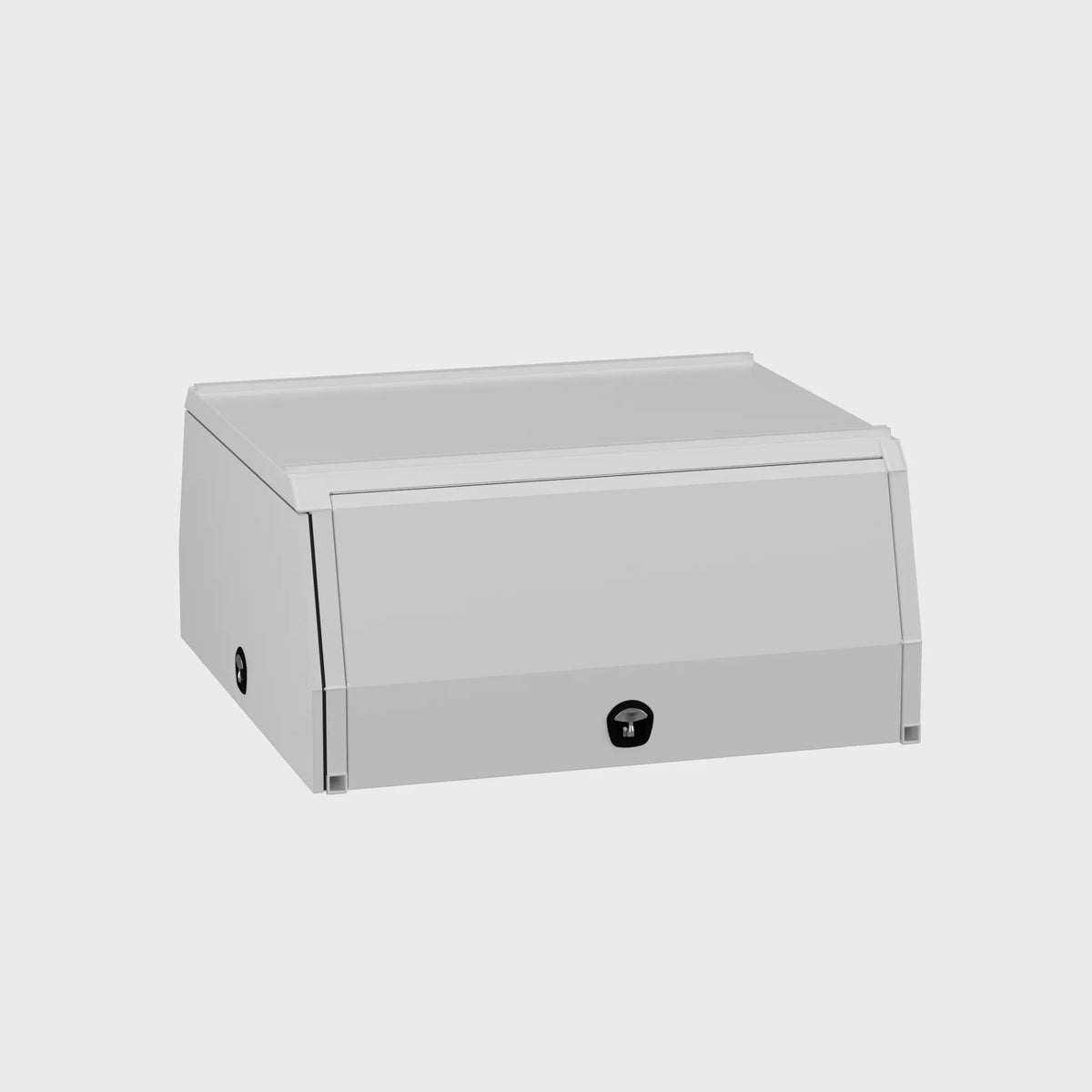

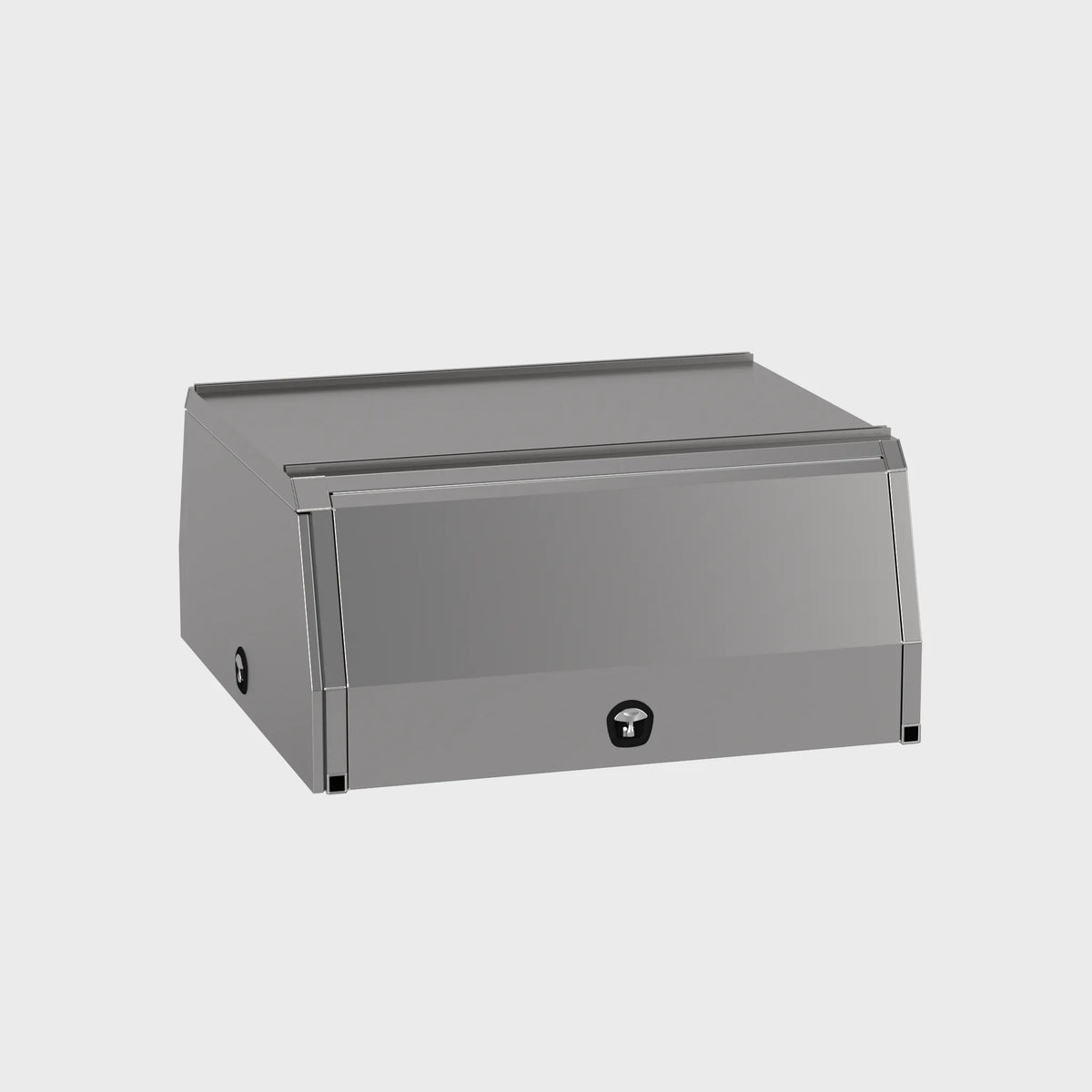

| Surface finish | Sahara Black/Raw Alloy/Splash White |
| Freight class | Class Bulk |
