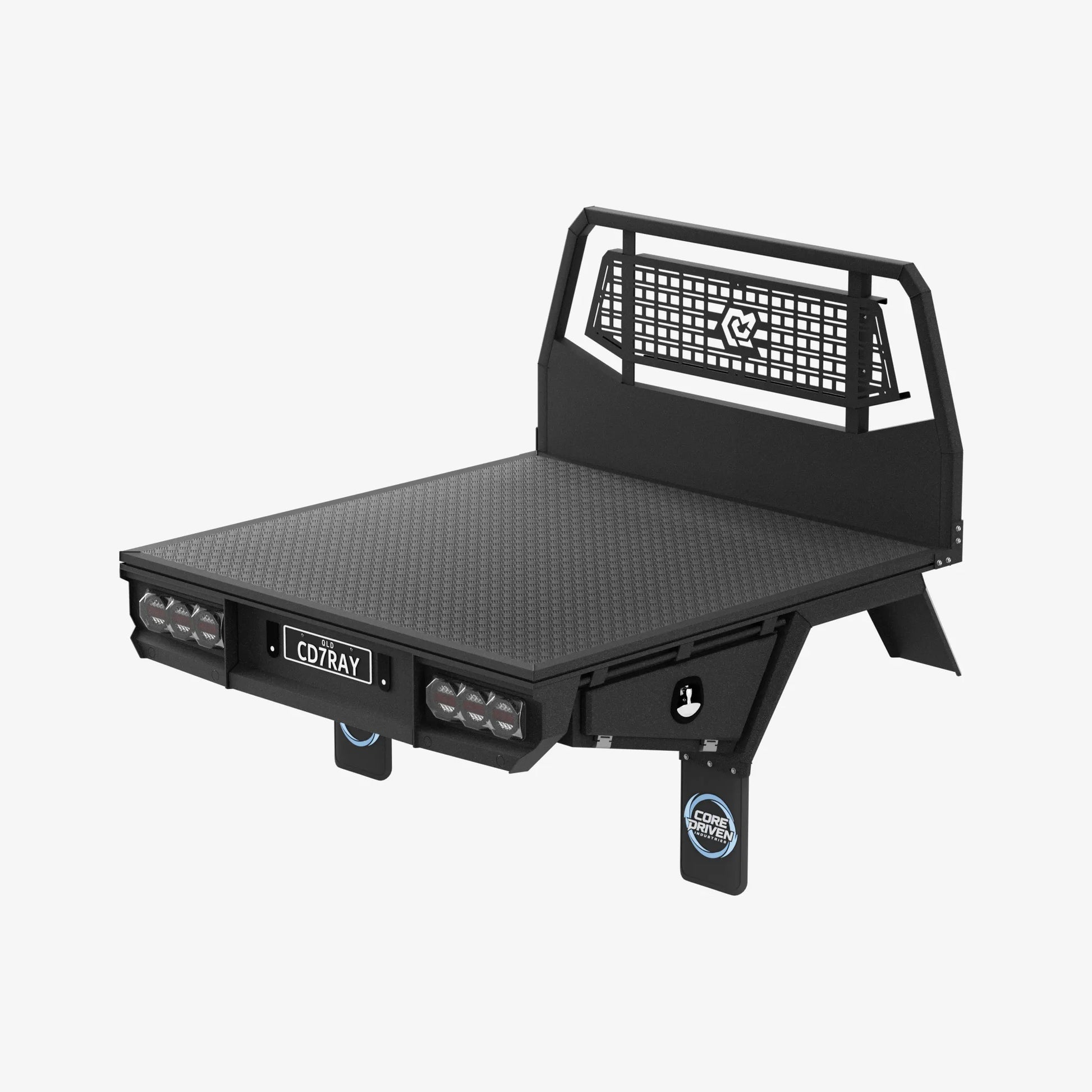

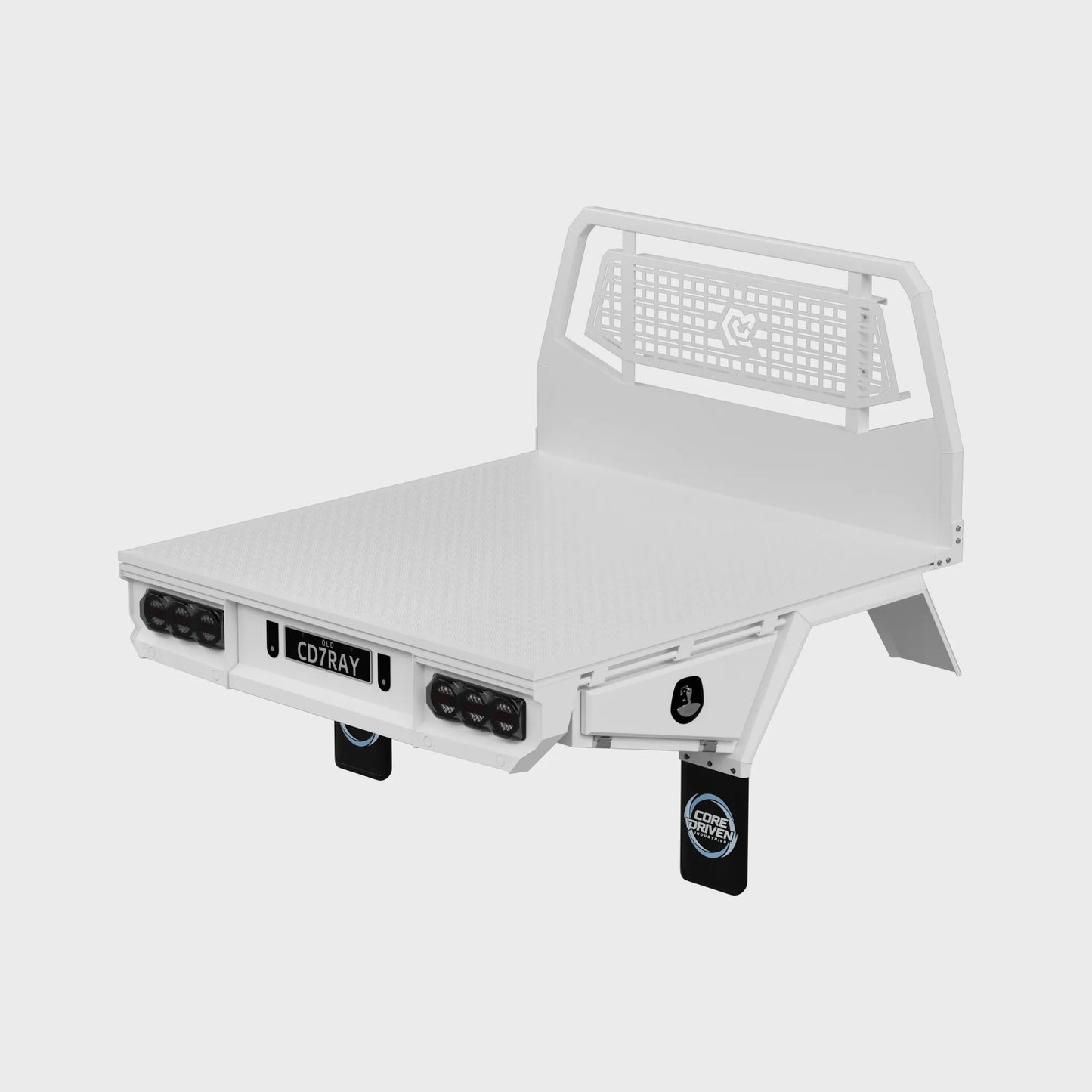

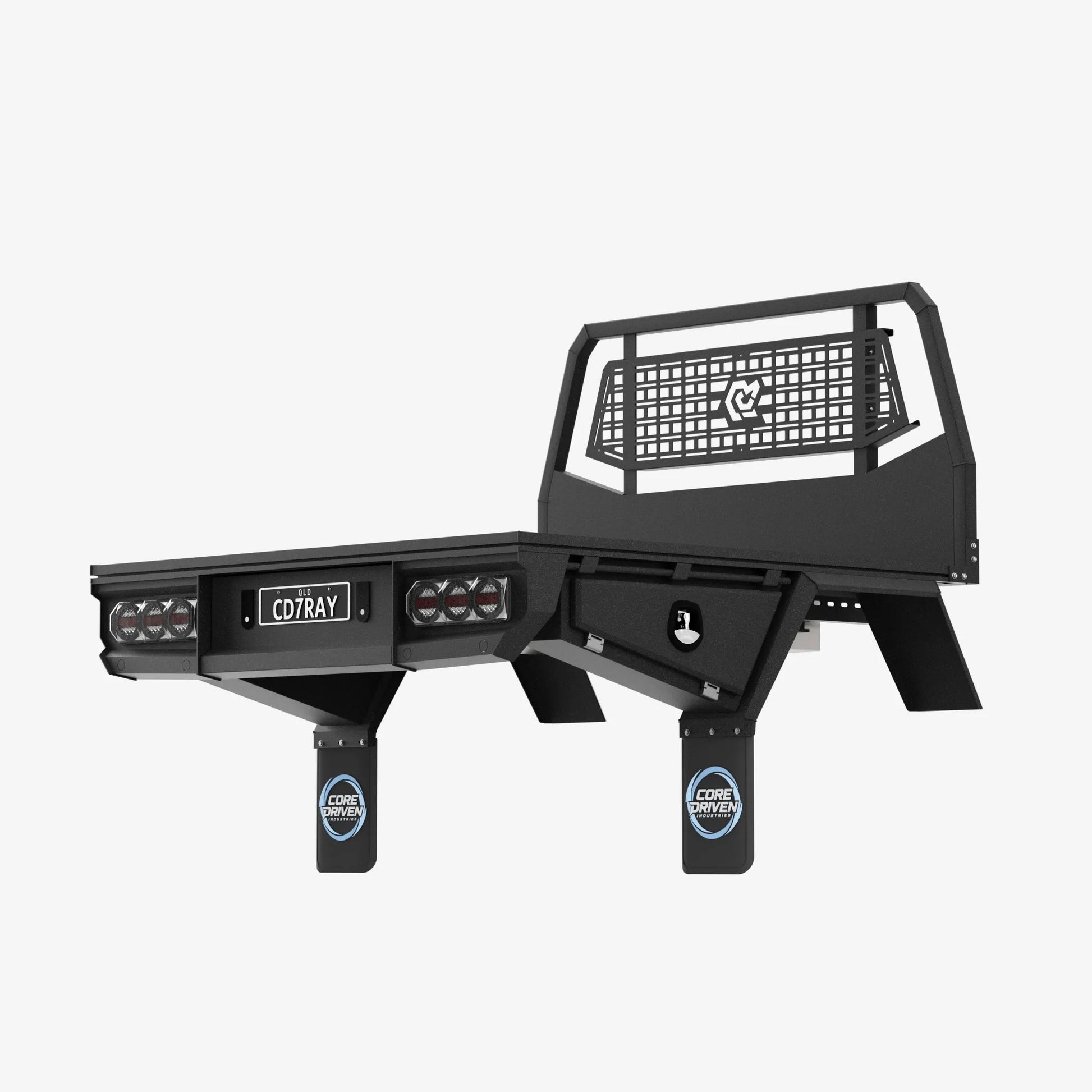

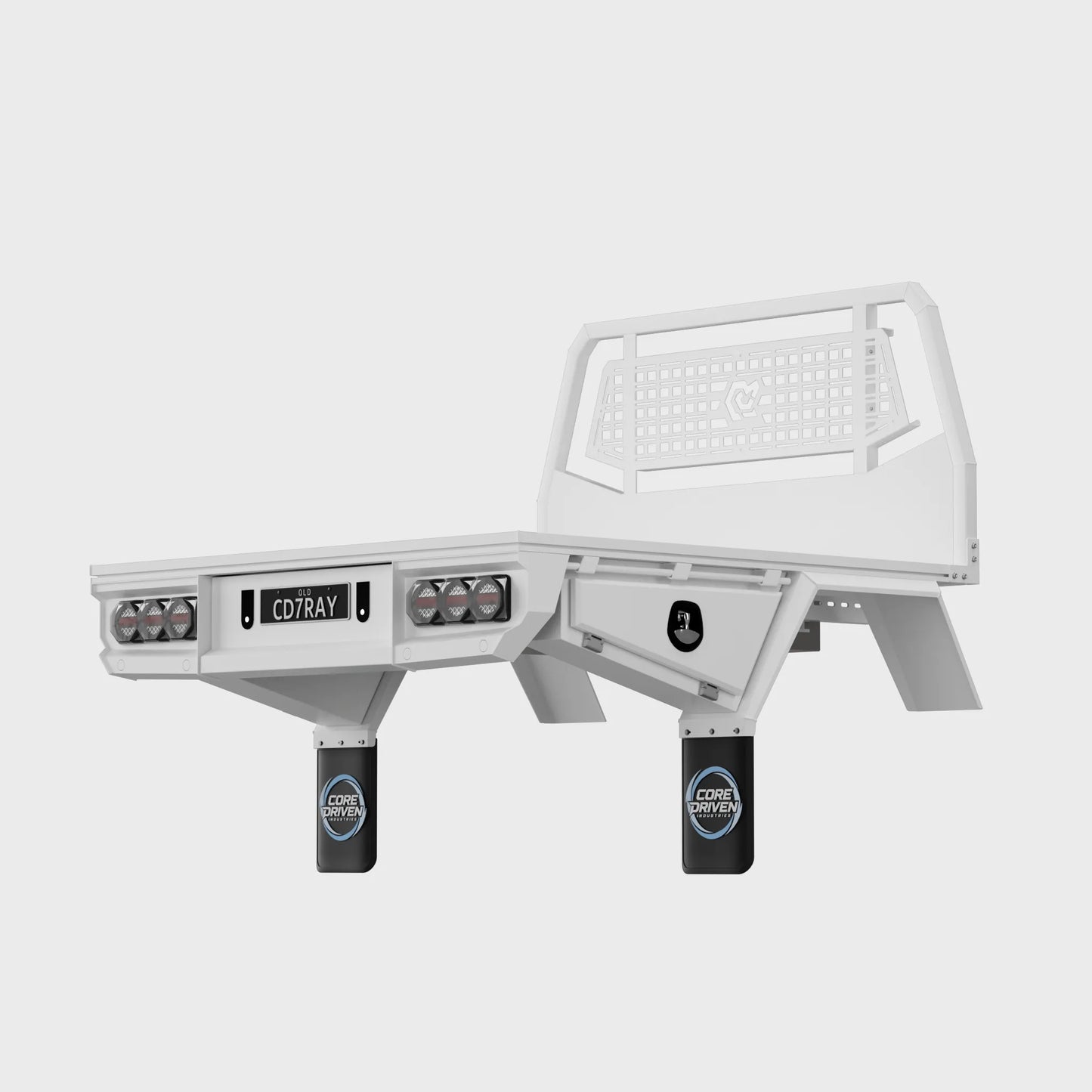

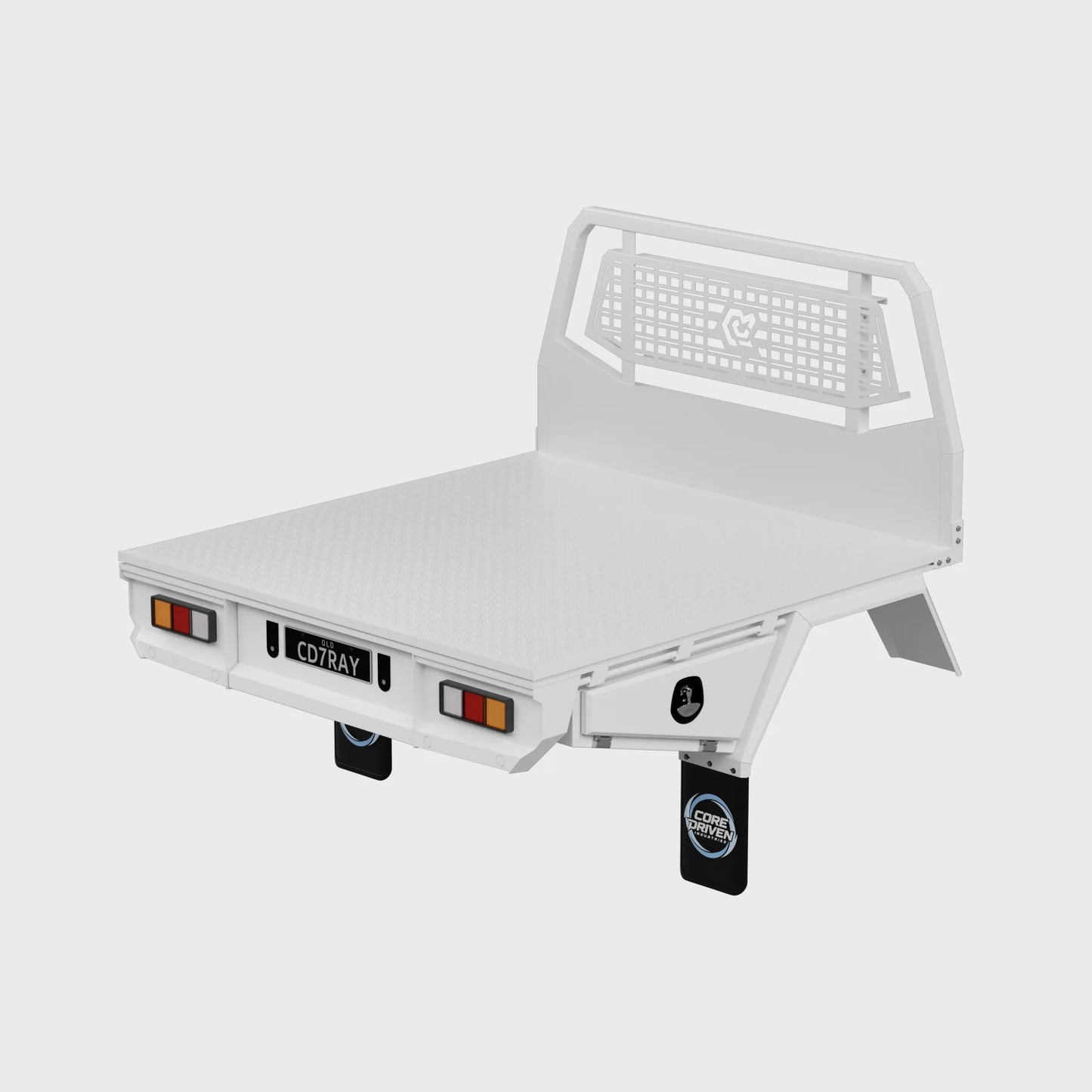

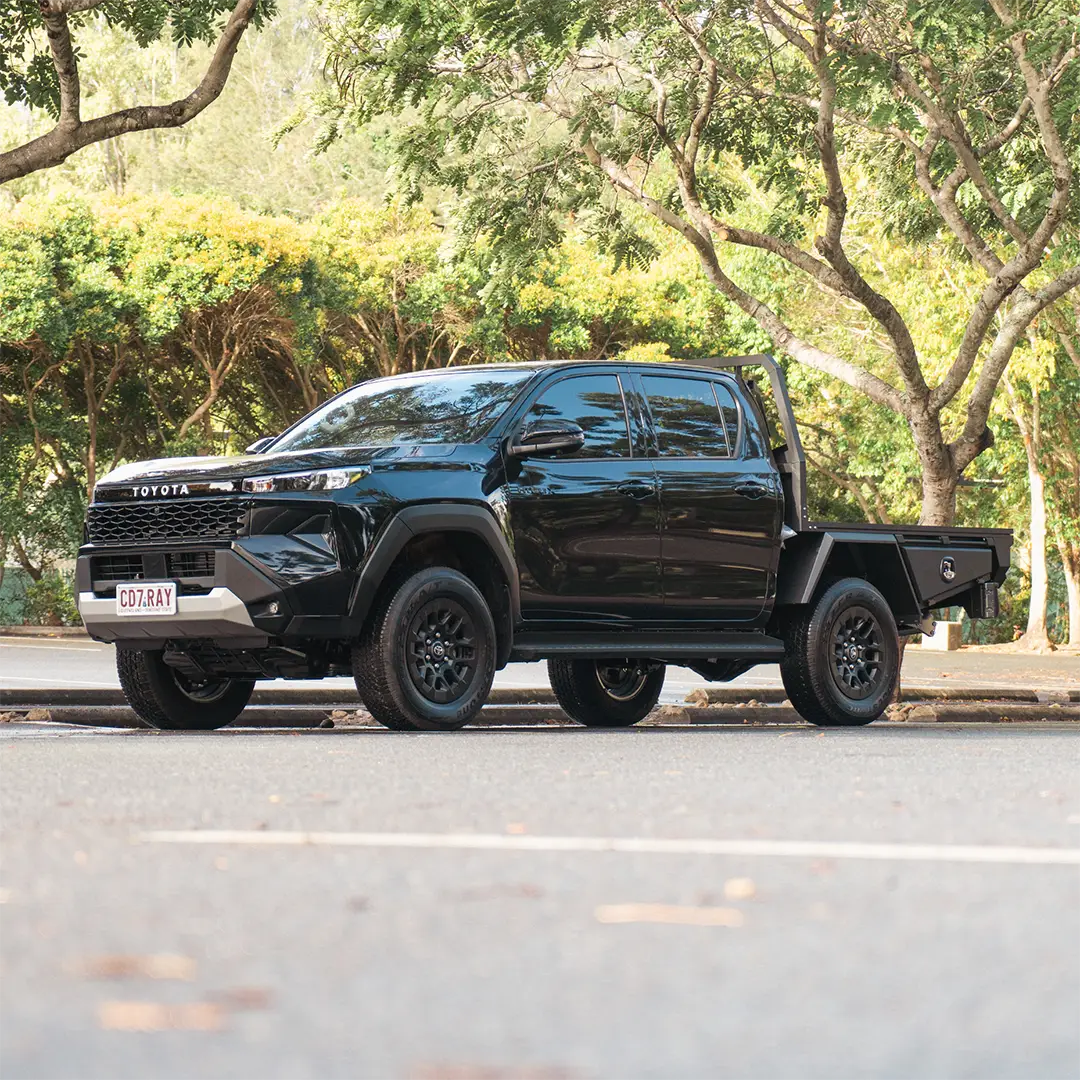

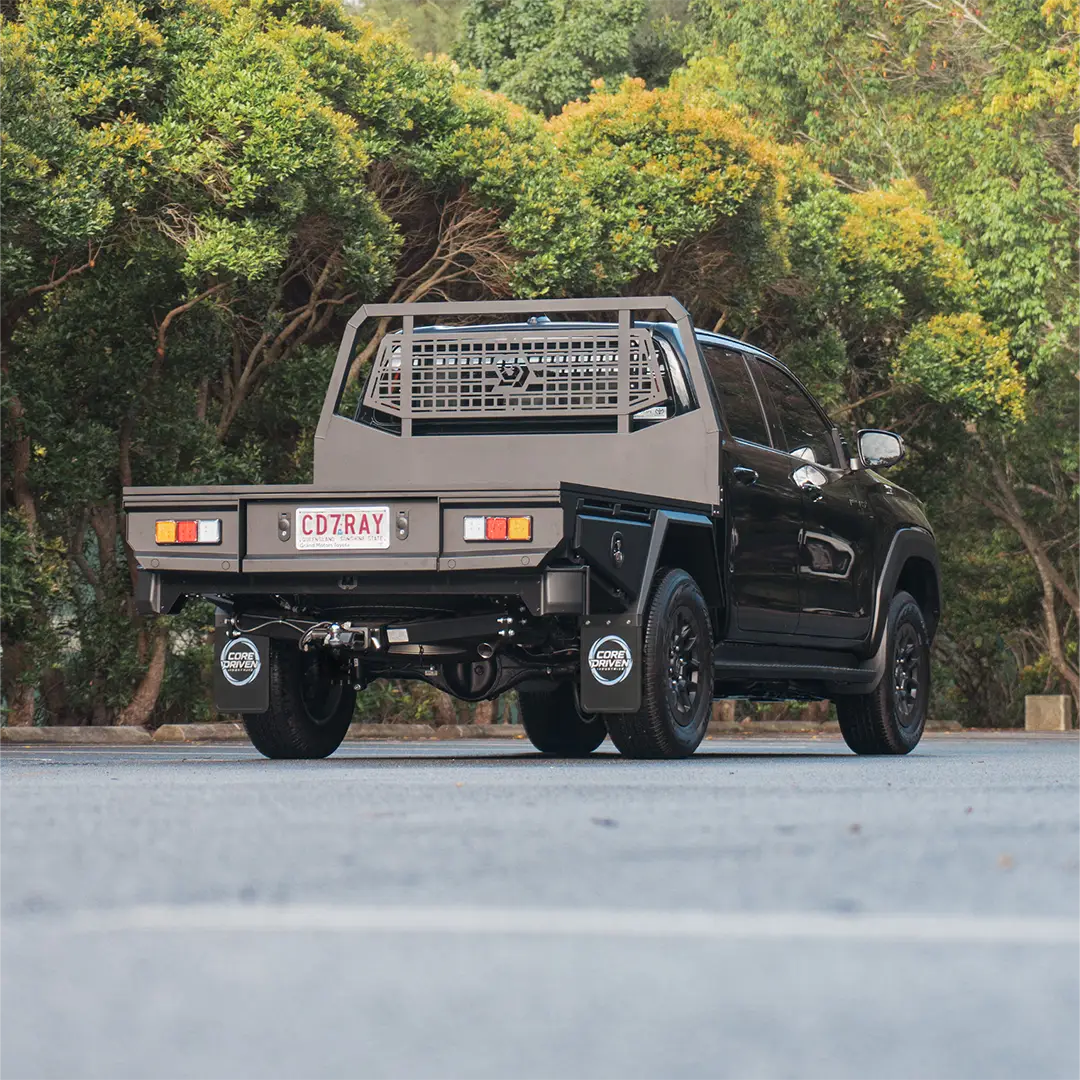

The CDI Base Series 1850 Aluminium Tray is designed for owners who prioritise maximum tray space without stepping into an extra cab or single cab platform.
Offering one of the longest tray configurations commonly fitted to dual cab vehicles, the 1850 provides additional deck space for tools, equipment and recreational gear while maintaining compatibility with the CDI Base Series Canopy range.
Built as a versatile foundation platform, the Base Series also supports future upgrades including drop sides and rear rack systems.

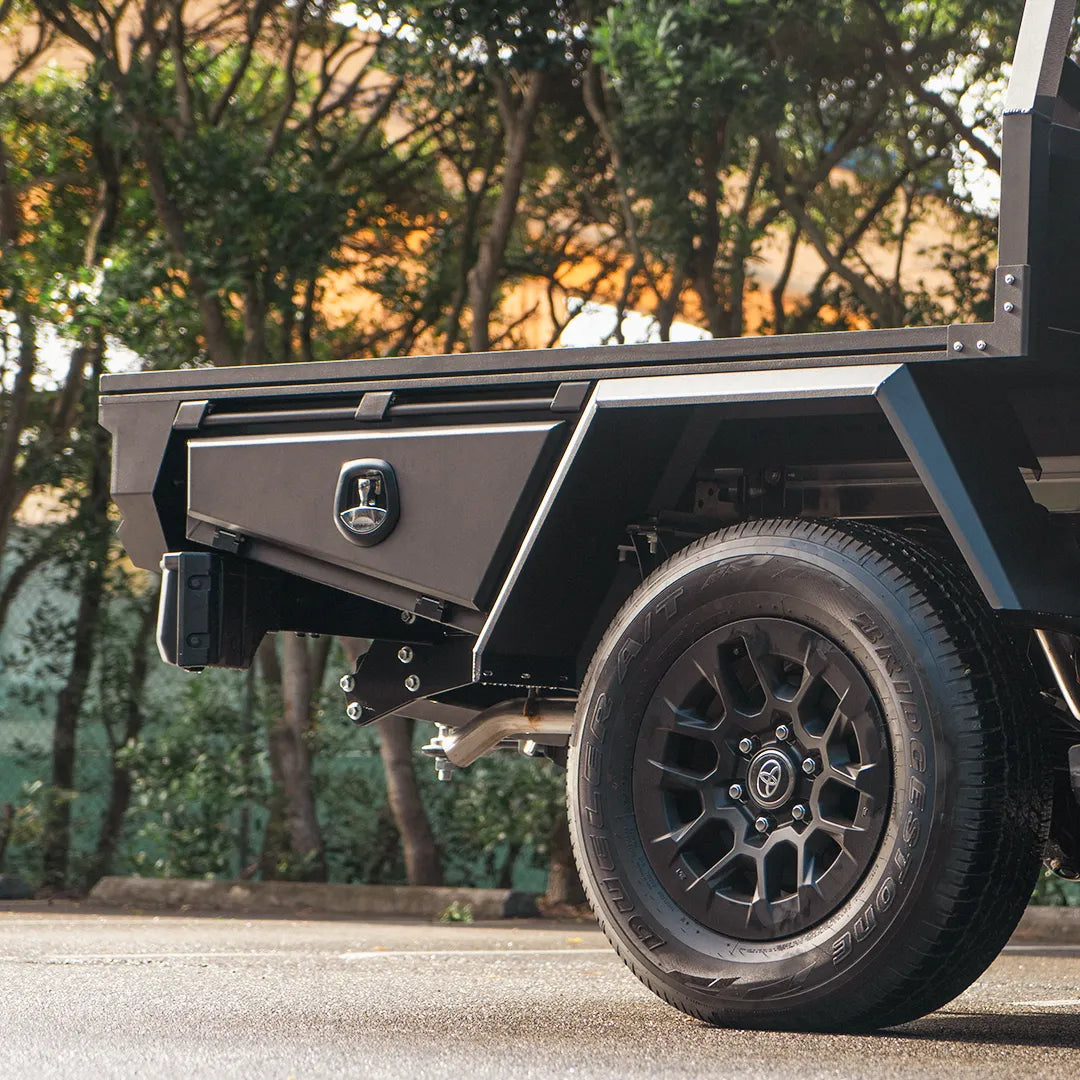

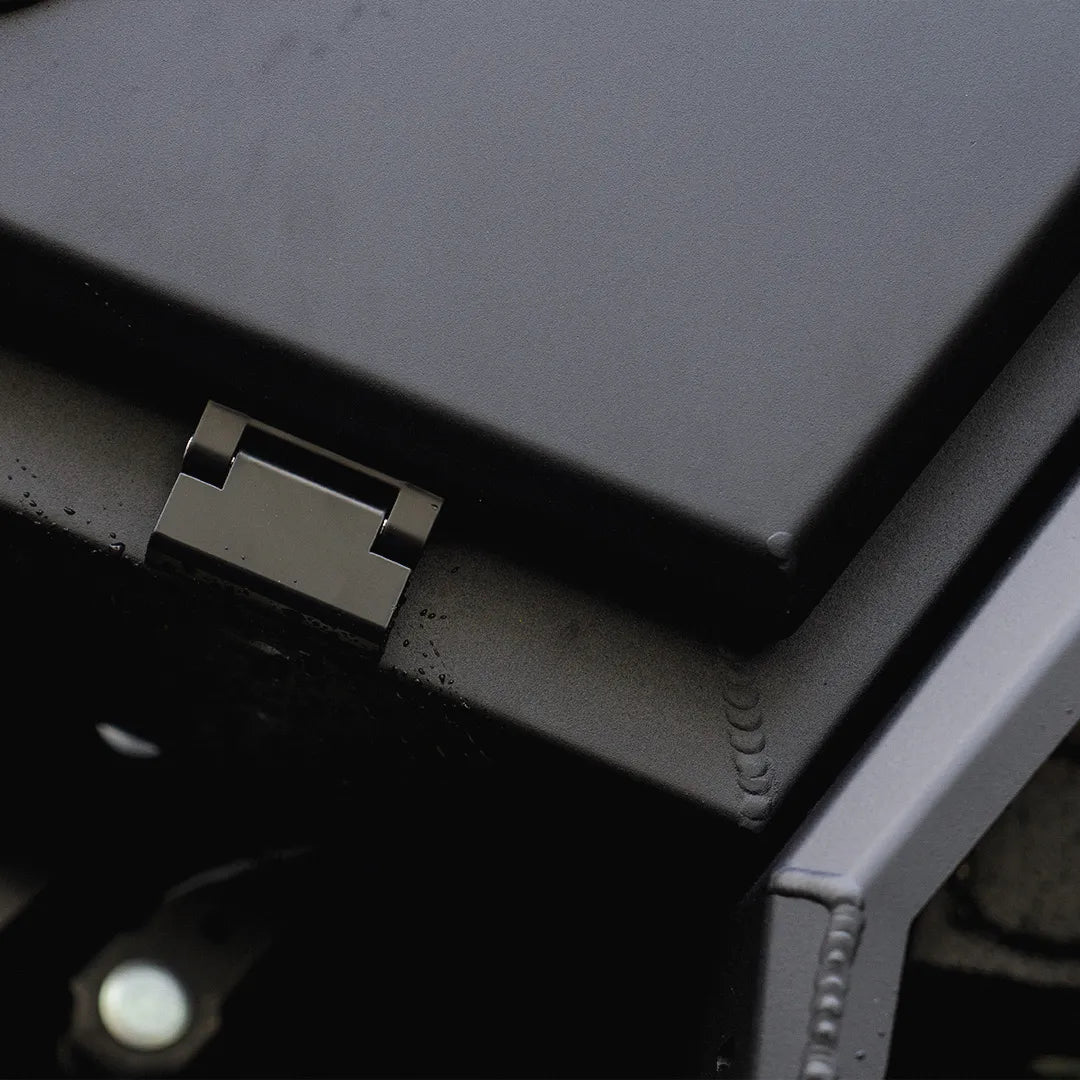

| Standard inclusions | Flat Pack Aluminium Tray Kit Headboard Assembly Tray Deck Underbody Toolboxes Tie-Down Rails Mudguards & Mudflaps Basic LED Tail Lights Mounting Brackets Fitting Kit (Bolts & Fasteners) |
|---|---|

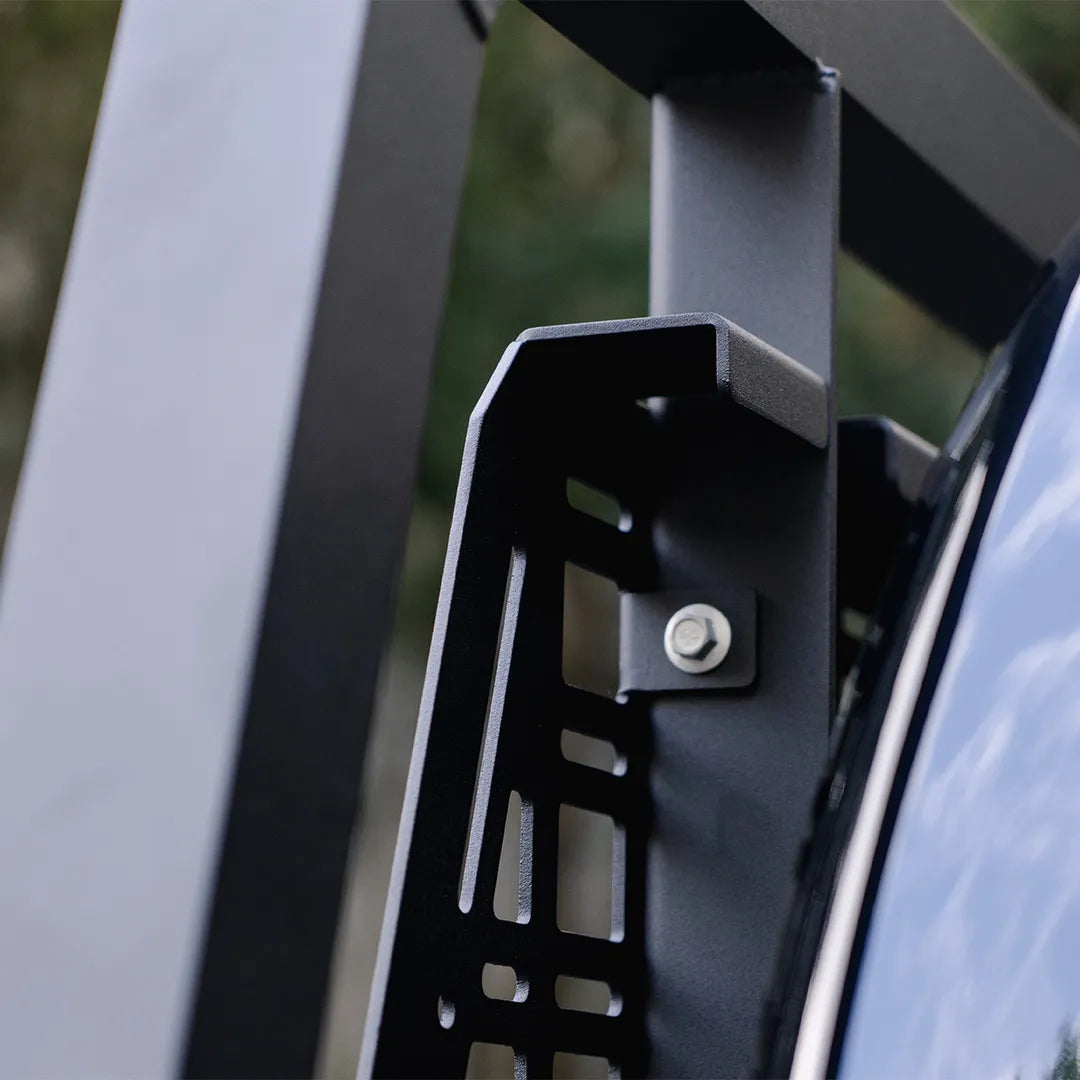

| Material | Molle Panel: 3mm 5052 Aluminium Headboard Frame: 50mm x 50mm 6061 Aluminium Tube Deck Edge Channels: 6061 Aluminium Extrusion Main Chassis Rails: 5mm 6061 Aluminium Extrusion Structural Reinforcement: 3mm 5052 Aluminium Plate Tray Deck: 3.5mm 5052 Aluminium Checker Plate Mounting Brackets: 4mm Stacked Steel |
| Weight | 152.0kg |
| External dimensions | Width: 1775mm Length: 1850mm Height: 900mm Usable Deck Length: 1800mm Headboard: 1775mm(W) x 850mm(H) x 50mm(L) |
| Surface finish | Sahara Black/Splash White Powder Coating |
| Freight class | Class Bulk |
CDI 2-Year Structural Warranty
