The CDI Base Series 2450 Aluminium Tray is designed for owners who require maximum flexibility from a single cab platform.
The extended tray length provides a versatile foundation for a wide range of work and storage configurations, from full canopy installations to mixed canopy-and-tray layouts. Compatible with all CDI Base Series Canopies, the 2450 allows the vehicle setup to evolve as operational requirements change.
Built as a modular platform, the Base Series also supports future upgrades including drop sides and rear rack systems.
| Standard inclusions | Flat Pack Aluminium Tray Kit Headboard Assembly Tray Deck Underbody Toolboxes Tie-Down Rails Mudguards & Mudflaps Basic LED Tail Lights Mounting Brackets Fitting Kit (Bolts & Fasteners) |
|---|---|
| Material | Molle Panel: 3mm 5052 Aluminium Headboard Frame: 50mm x 50mm 6061 Aluminium Tube Deck Edge Channels: 6061 Aluminium Extrusion Main Chassis Rails: 5mm 6061 Aluminium Extrusion Structural Reinforcement: 3mm 5052 Aluminium Plate Tray Deck: 3.5mm 5052 Aluminium Checker Plate Mounting Brackets: 4mm Stacked Steel |
| Weight | 164.0kg |
| External dimensions | Width: 1775mm Length: 2450mm Height: 900mm Usable Deck Length: 2400mm Headboard: 1775mm(W) x 850mm(H) x 50mm(L) |

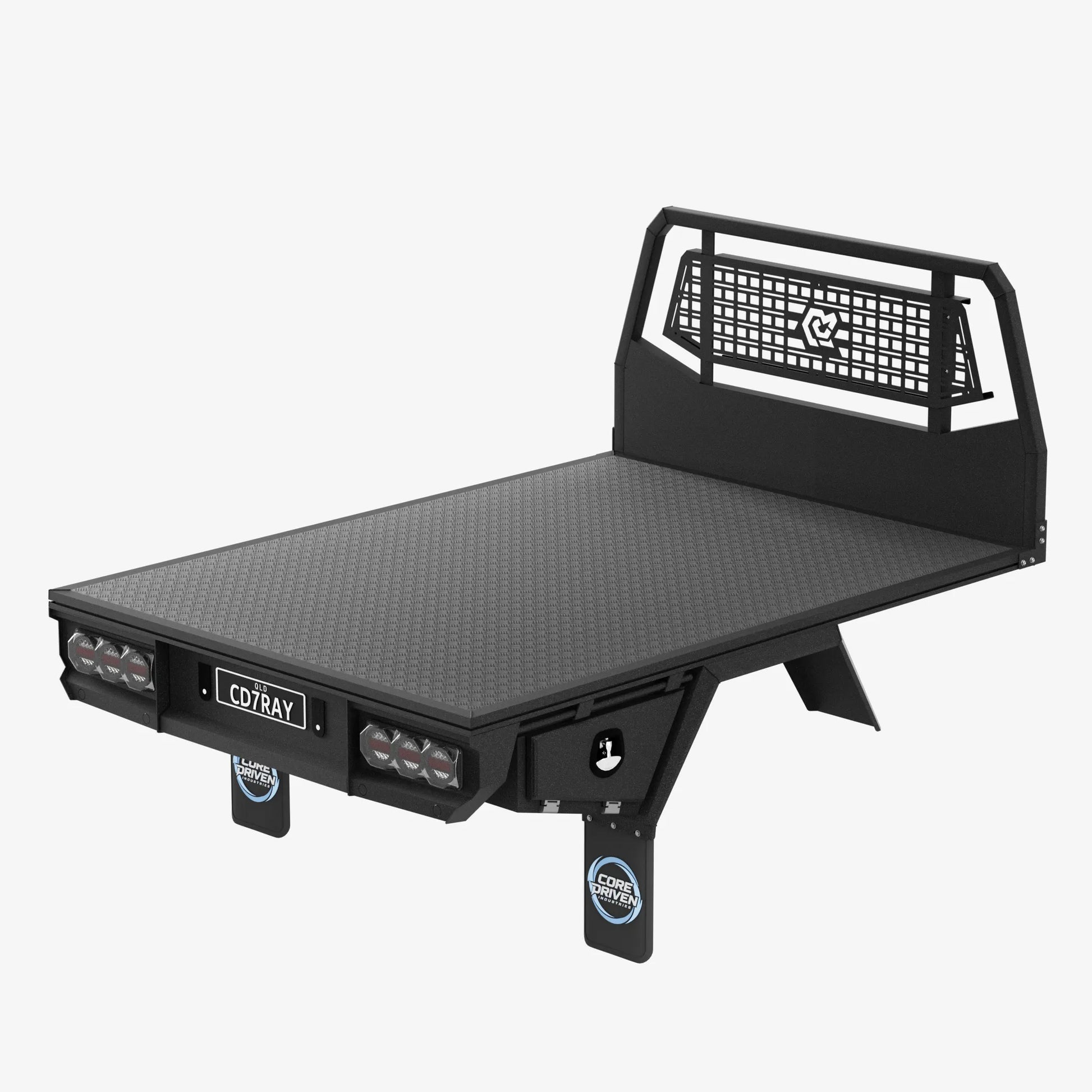

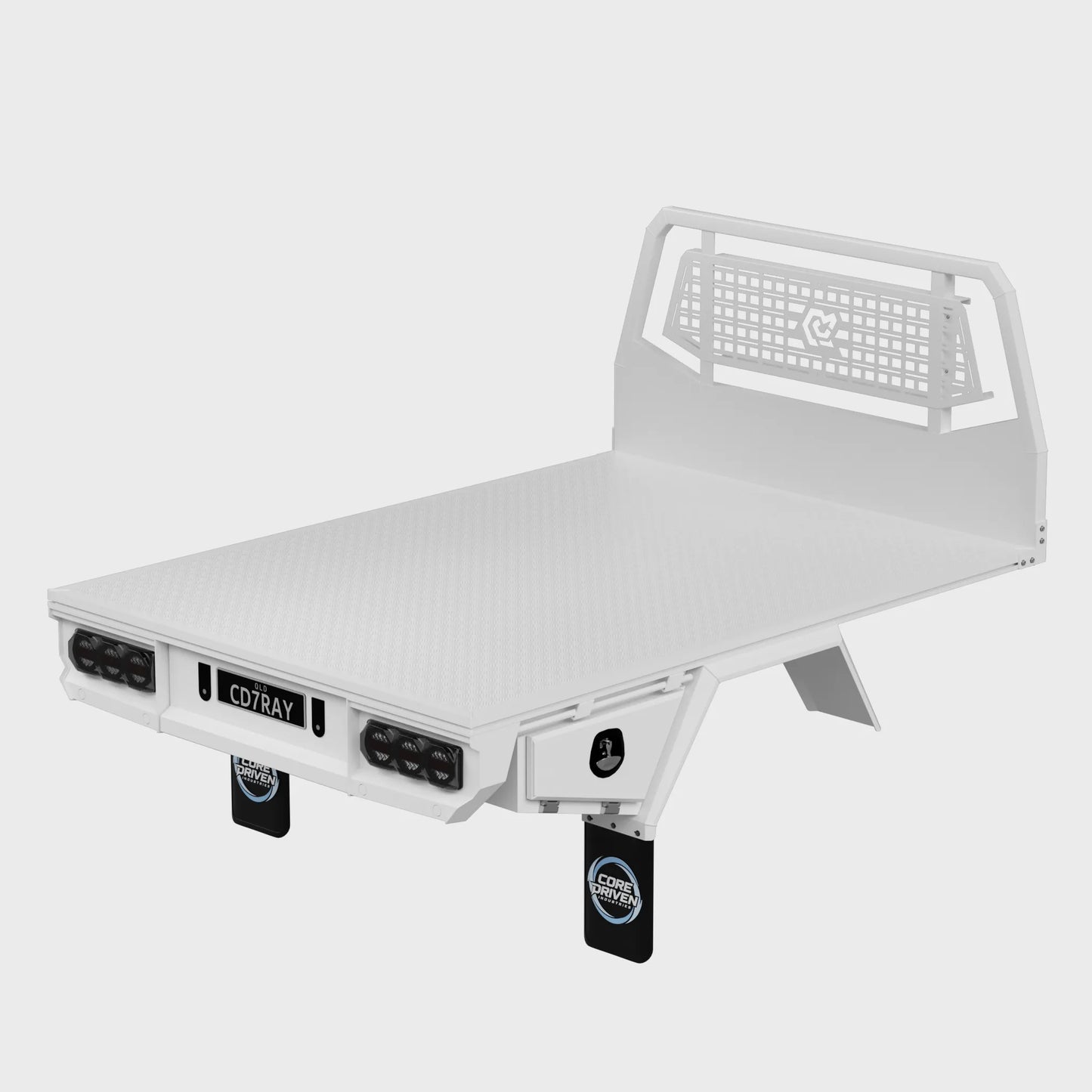

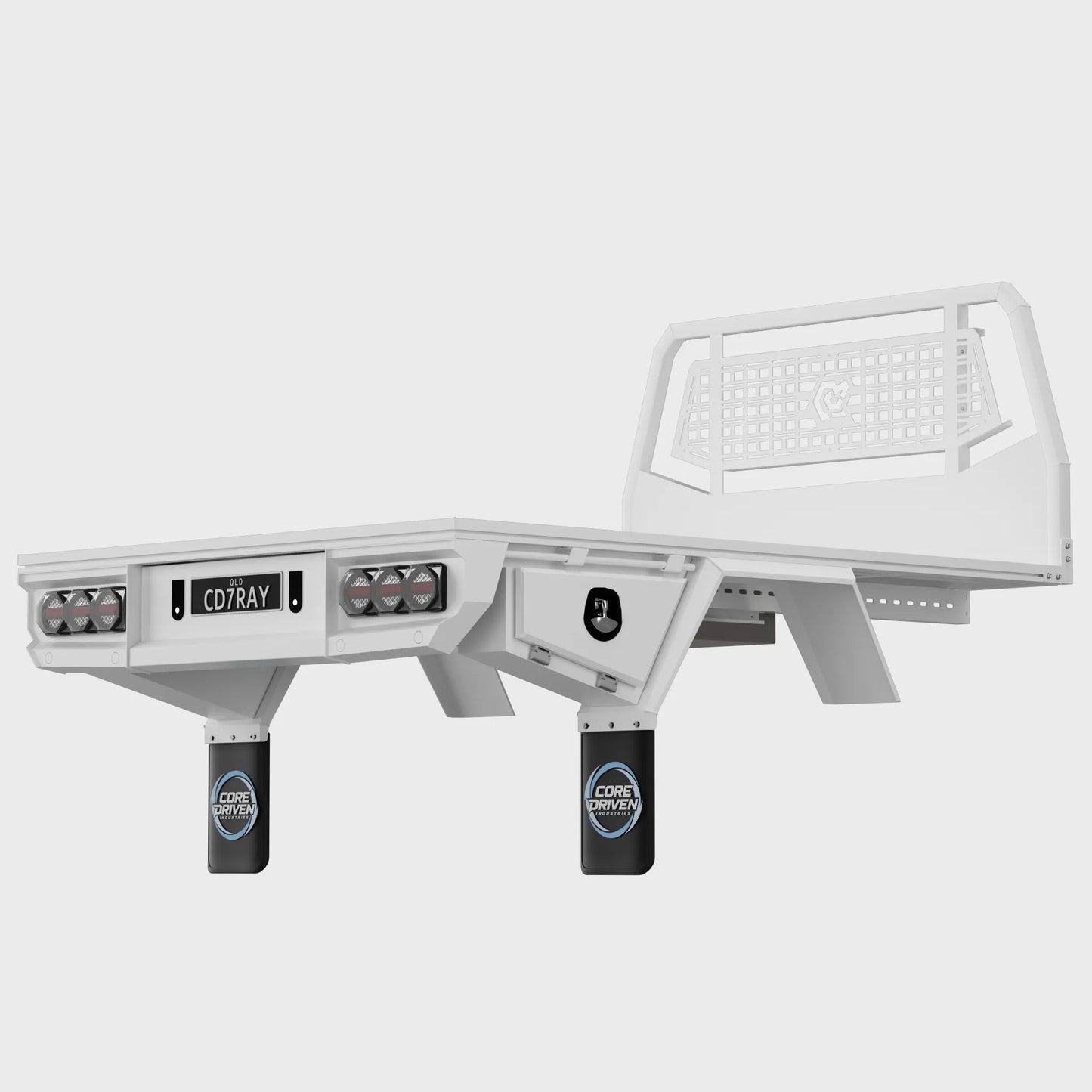

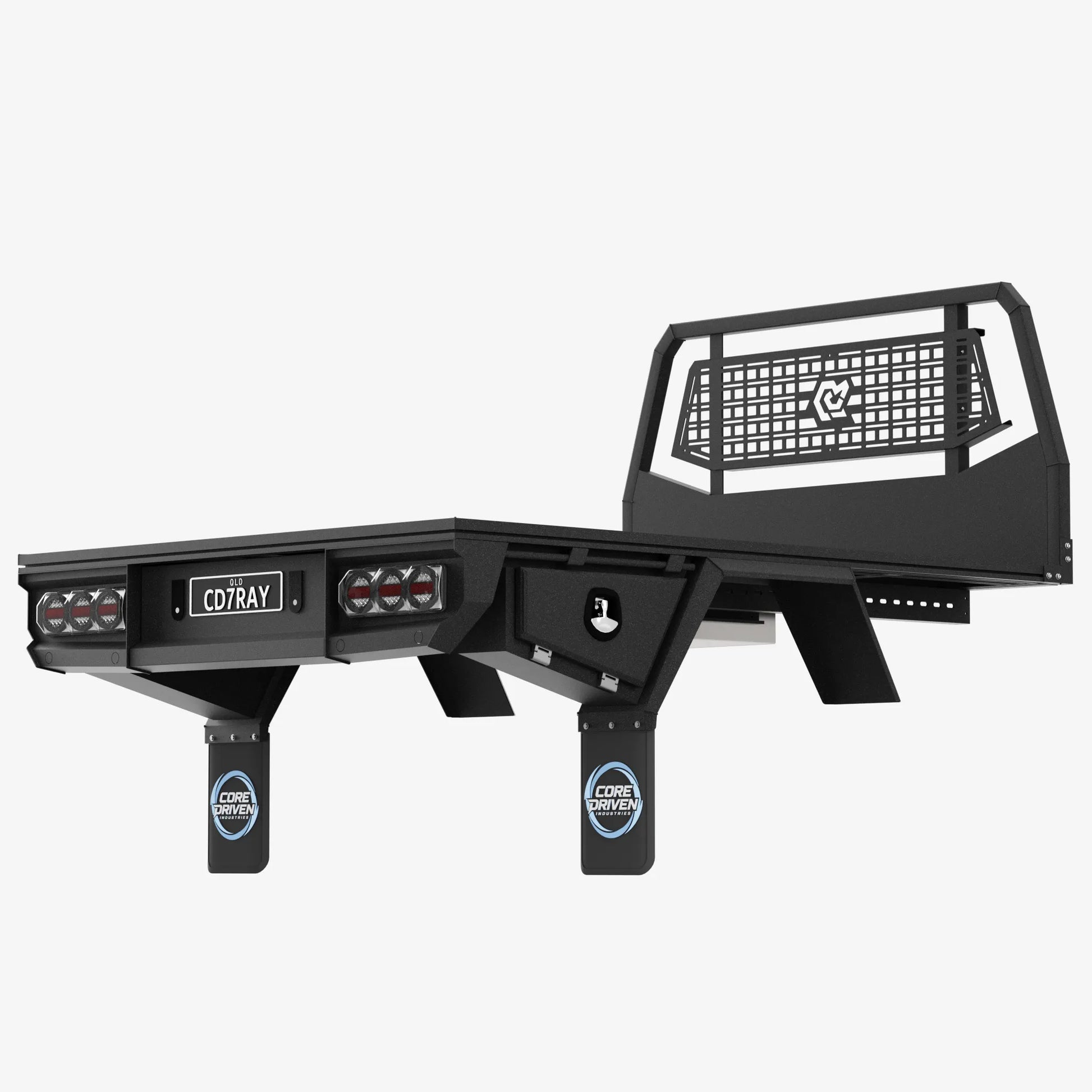

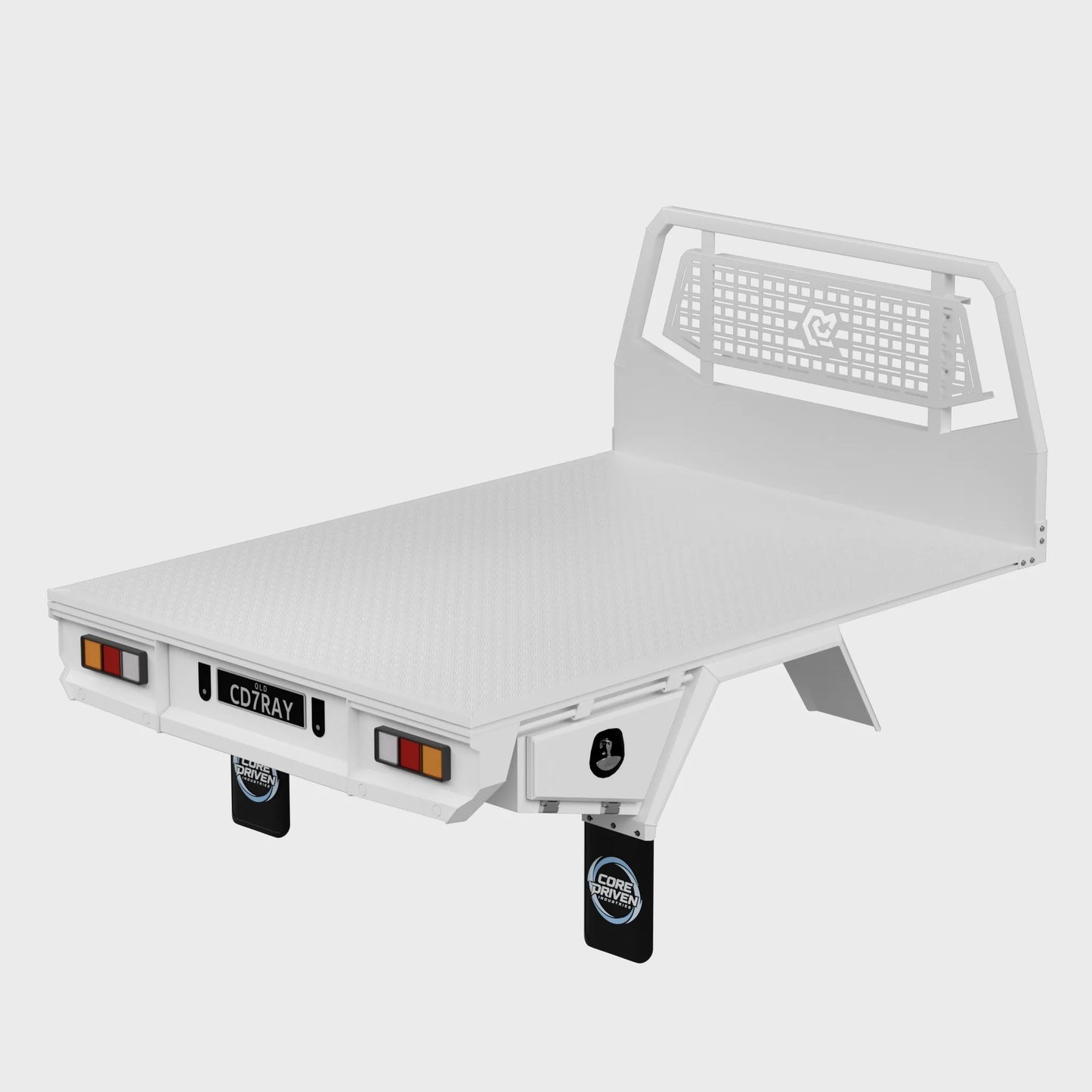

| Surface finish | Sahara Black/Splash White Powder Coating |
| Freight class | Class Bulk |
CDI 2-Year Structural Warranty
