LC79 Factory Tray Canopies
Designed around the factory tray, not adapted to it. A purpose-built canopy system for the LandCruiser 79.
Why it exists
Universal Fit vs OEM Tray Fit

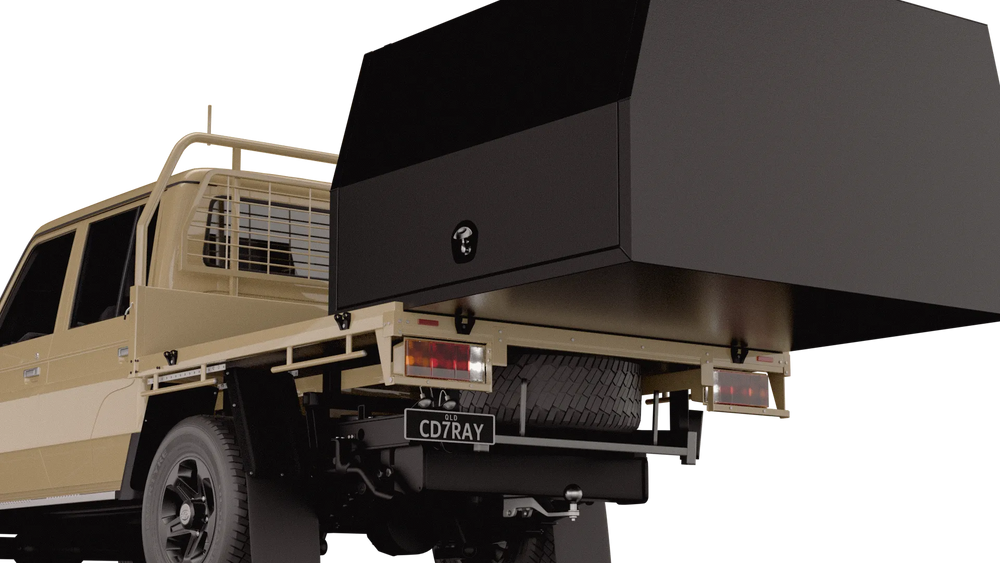

Traditional canopy
Built to fit.
- Universal body architecture
- Additional door clearance required
- Less integrated visual profile

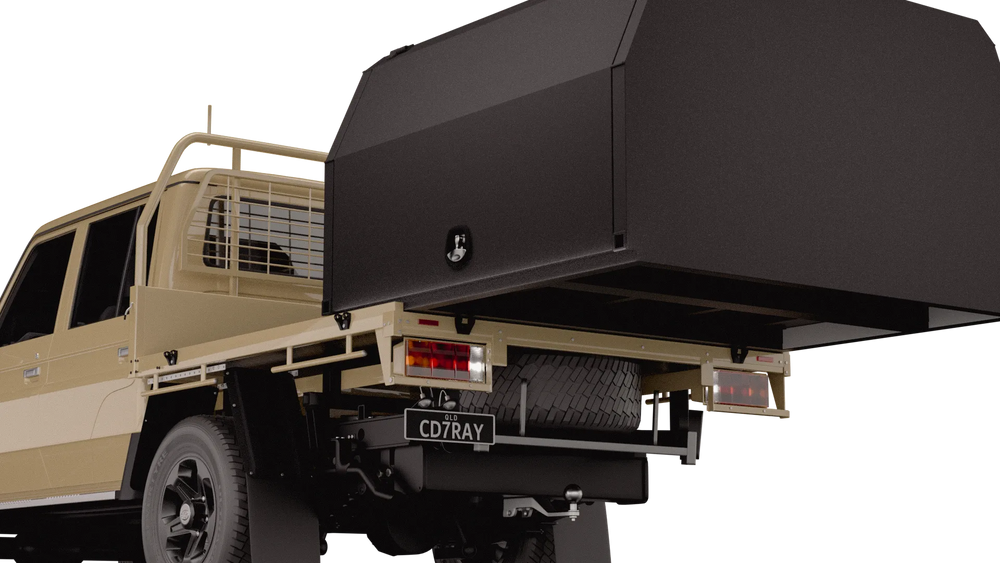

Factory tray design
Designed around one.

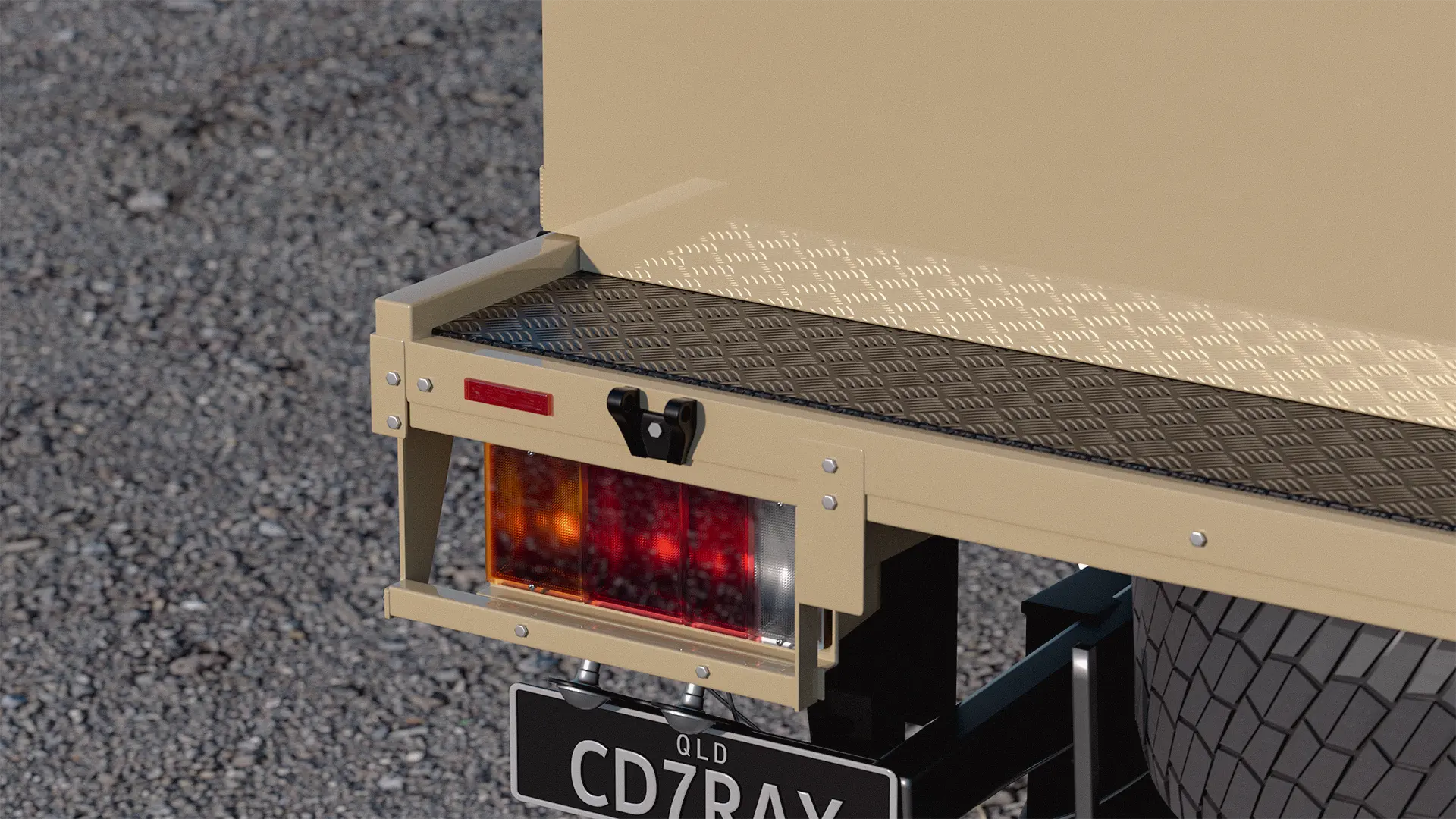

- Recessed T-body design
- Contoured around the tray profile
- Reads like factory fitted
Engineering
Built to a Standard
Available finishes
Choose your colour

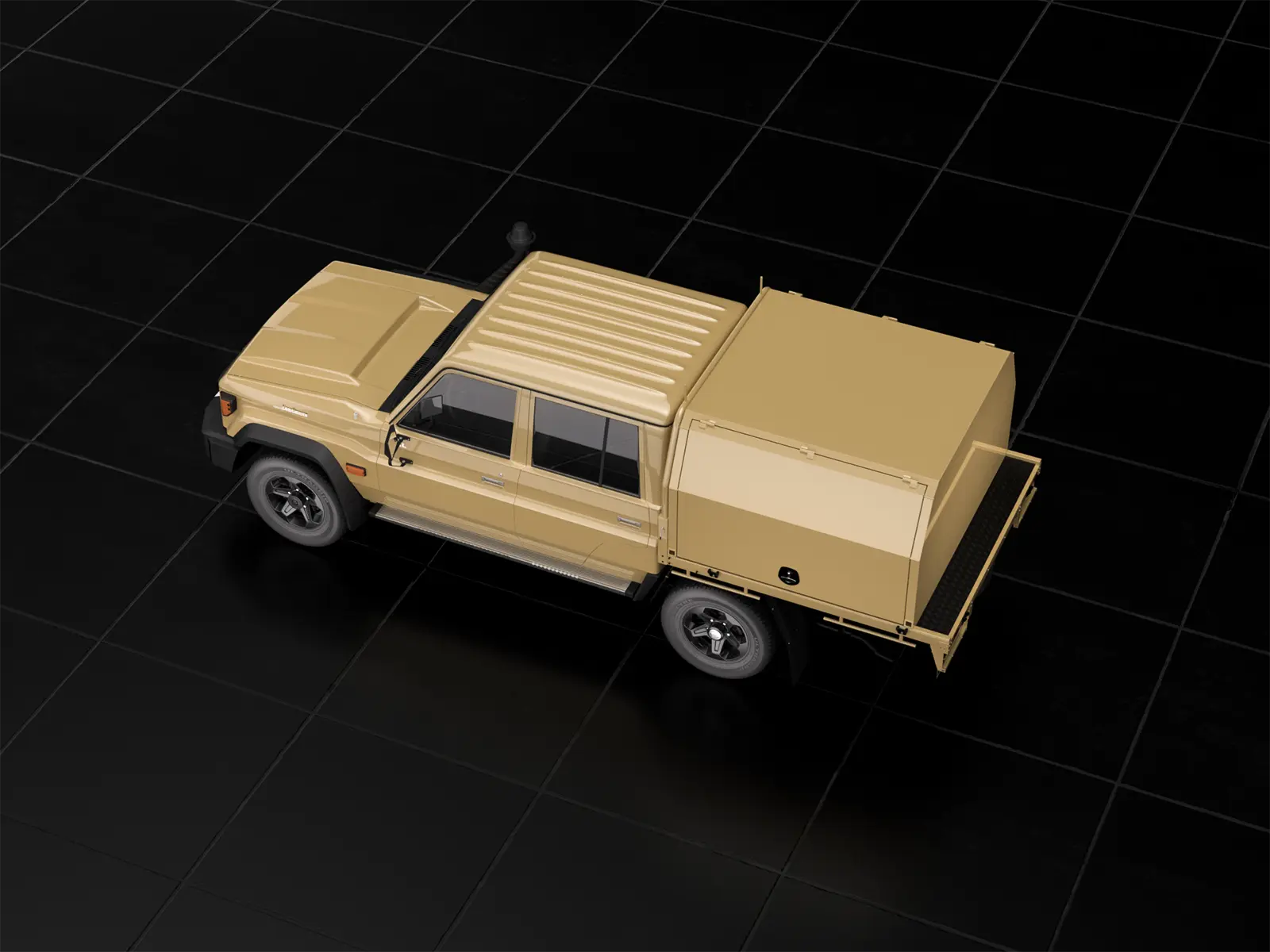

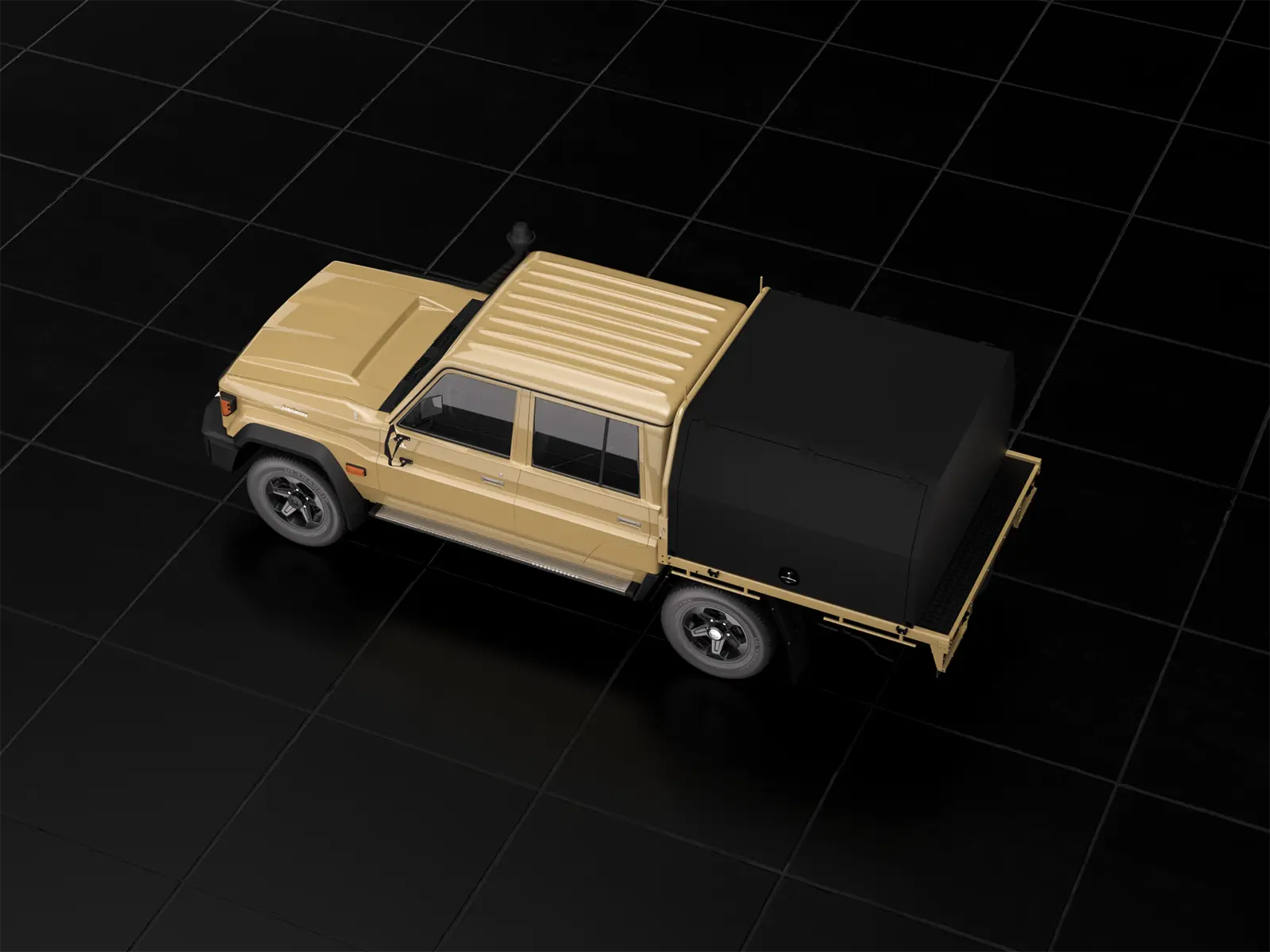

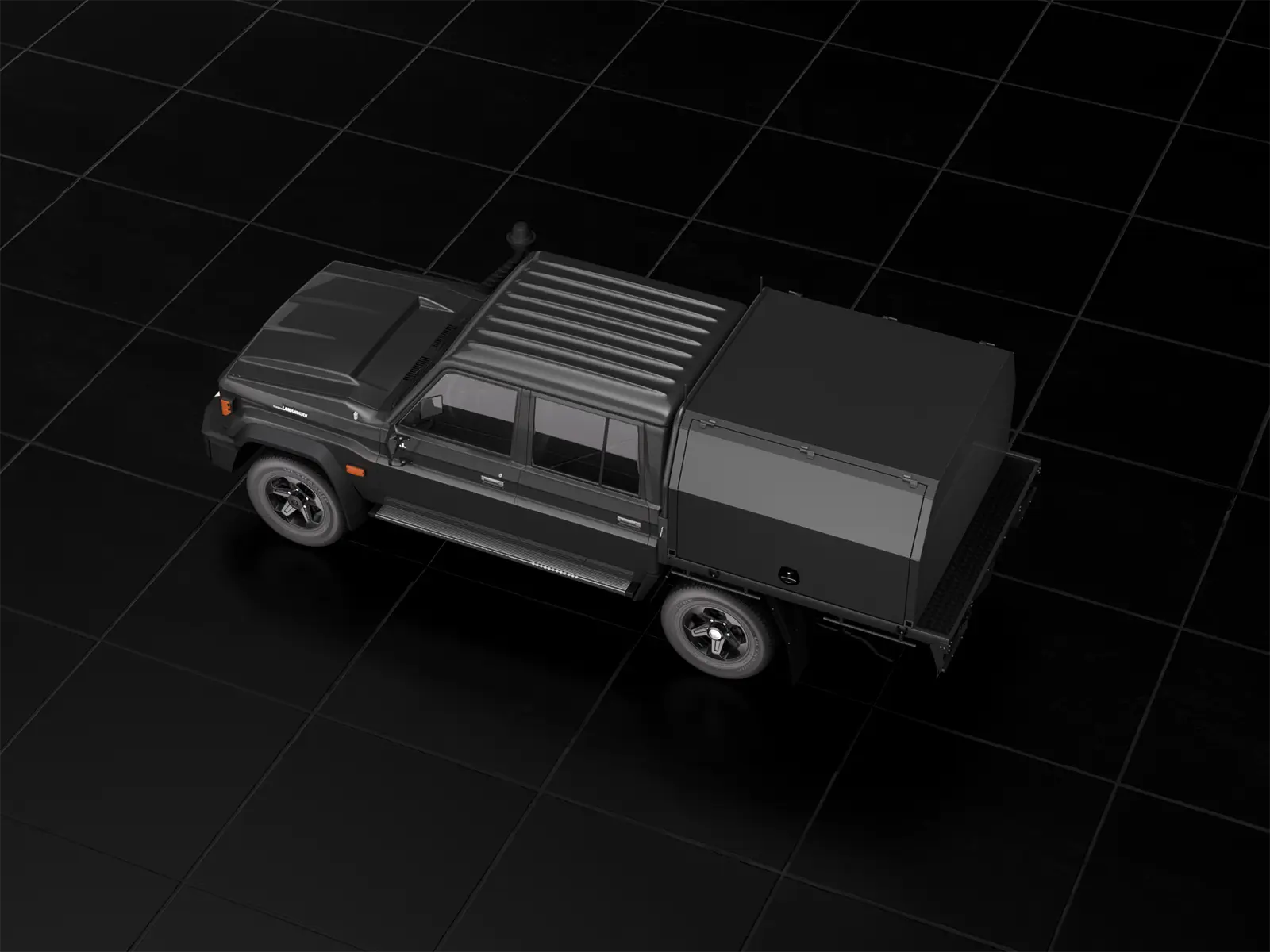

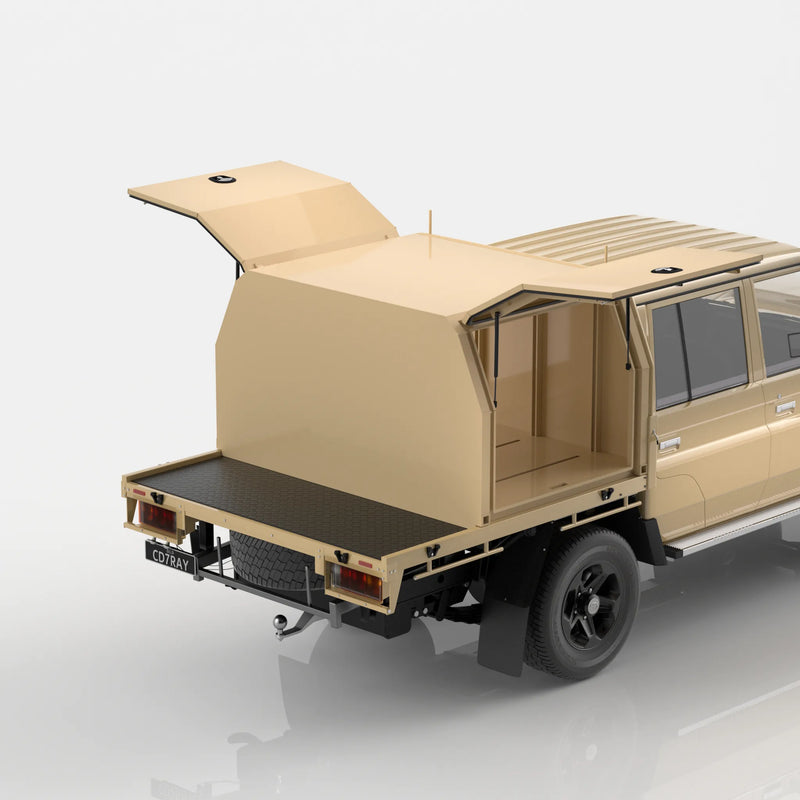

From the textured Black Sahara finish to Sandy Taupe and Graphite powder coat options, each colour has been selected to complement popular LC70 factory paint schemes. All finishes are UV-resistant and engineered for long-term durability, with more LandCruiser-inspired finishes planned in the future.

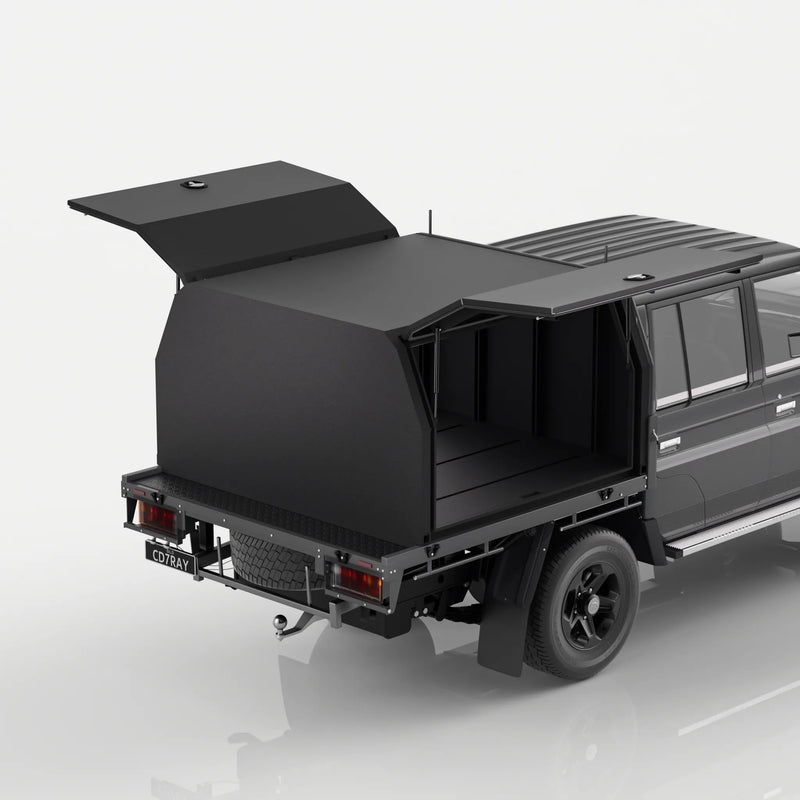

Sleek matte black finish that integrates seamlessly with the LC79 body.
Technical details
Specs & fitment.
Dimensions

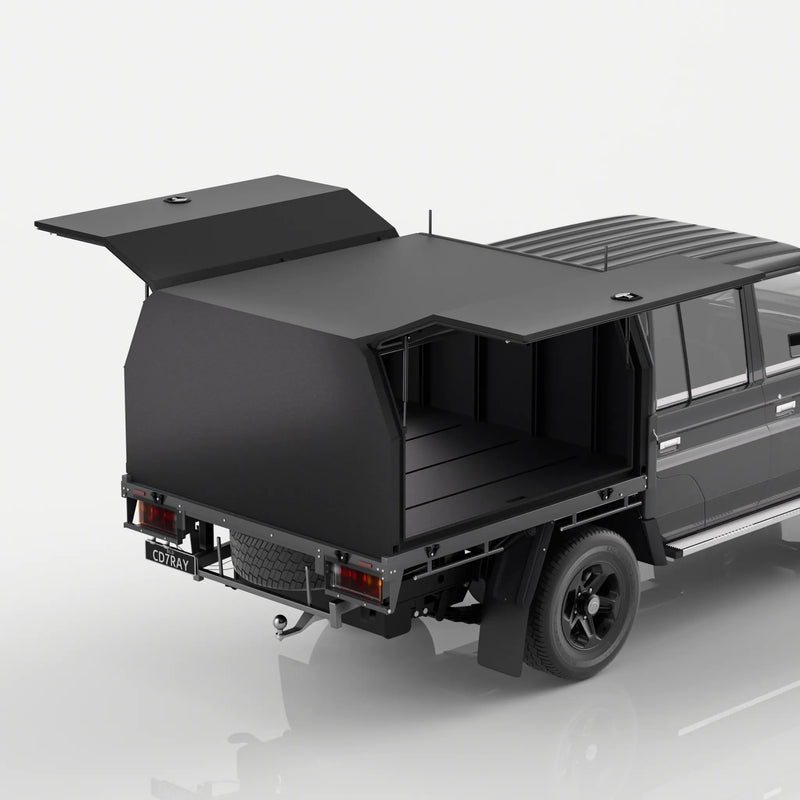

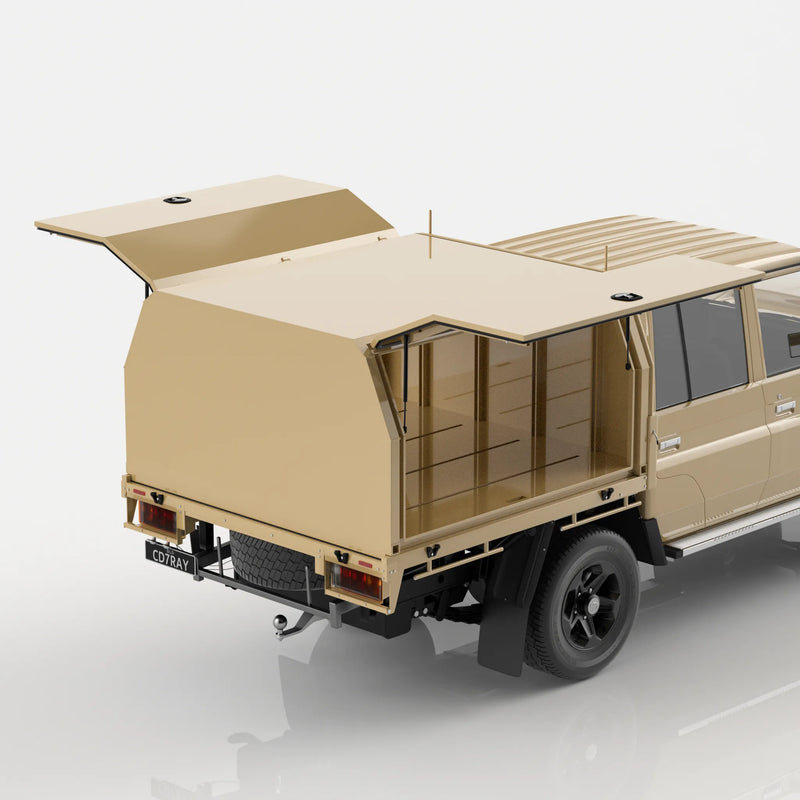

| 1800 Series | 1600 Series | |
|---|---|---|
| Length | 1800 mm | 1600 mm |
| Width | 1840 mm | 1840 mm |
| Height | 1000 mm | 1000 mm |
| Entry W (rubber to rubber) |
1584 mm | 1384 mm |
| Entry H (rubber to rubber) |
825 mm | 825 mm |
| Internal H (floor to channel) |
875 mm | 875 mm |
| Weight | 155 kg | 148 kg |
Materials
Built from 2.5 mm 5052 aluminium plate and reinforced internally with 41×38 mm C-channel/profile sections for added rigidity across the canopy body and doors.
LC79 Factory Tray Fitment
Designed around the profile of the LC79 factory steel tray. Compatible with standard rubber mats while maintaining the intended fitment geometry.
Using a tray mat may slightly increase the visible clearance between the canopy door and tray lip.
Weather Protection
Designed for harsh Australian conditions, with perimeter sealing and integrated weather protection features to help keep gear protected from dust, rain and the elements.
Finishes & Paint Options
Available in Black Sahara textured powder coat, Sandy Taupe and Graphite finishes.
For customers seeking a closer factory appearance, automotive spray painting is available as an optional upgrade, allowing more precise colour matching and a more integrated OEM-style finish.
