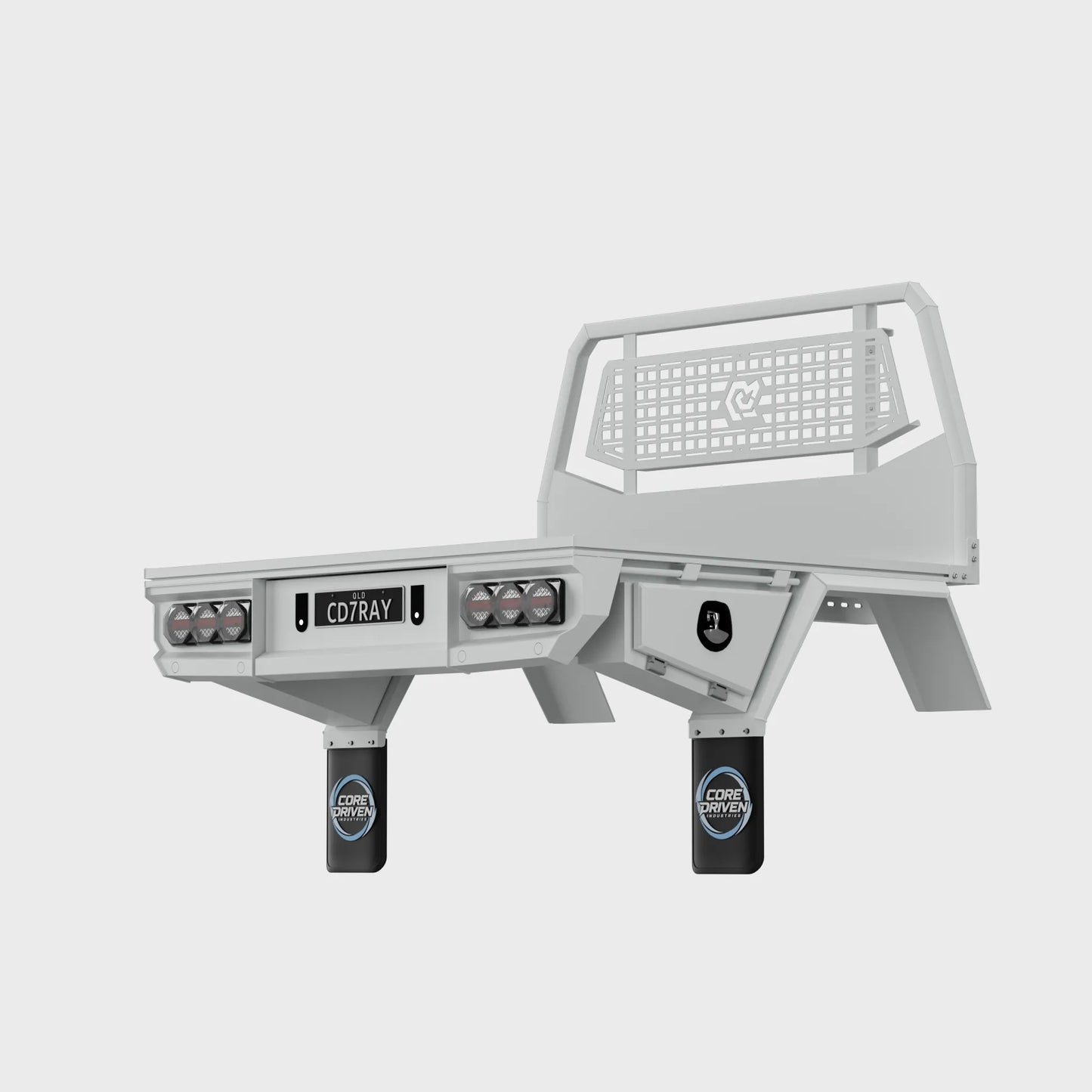

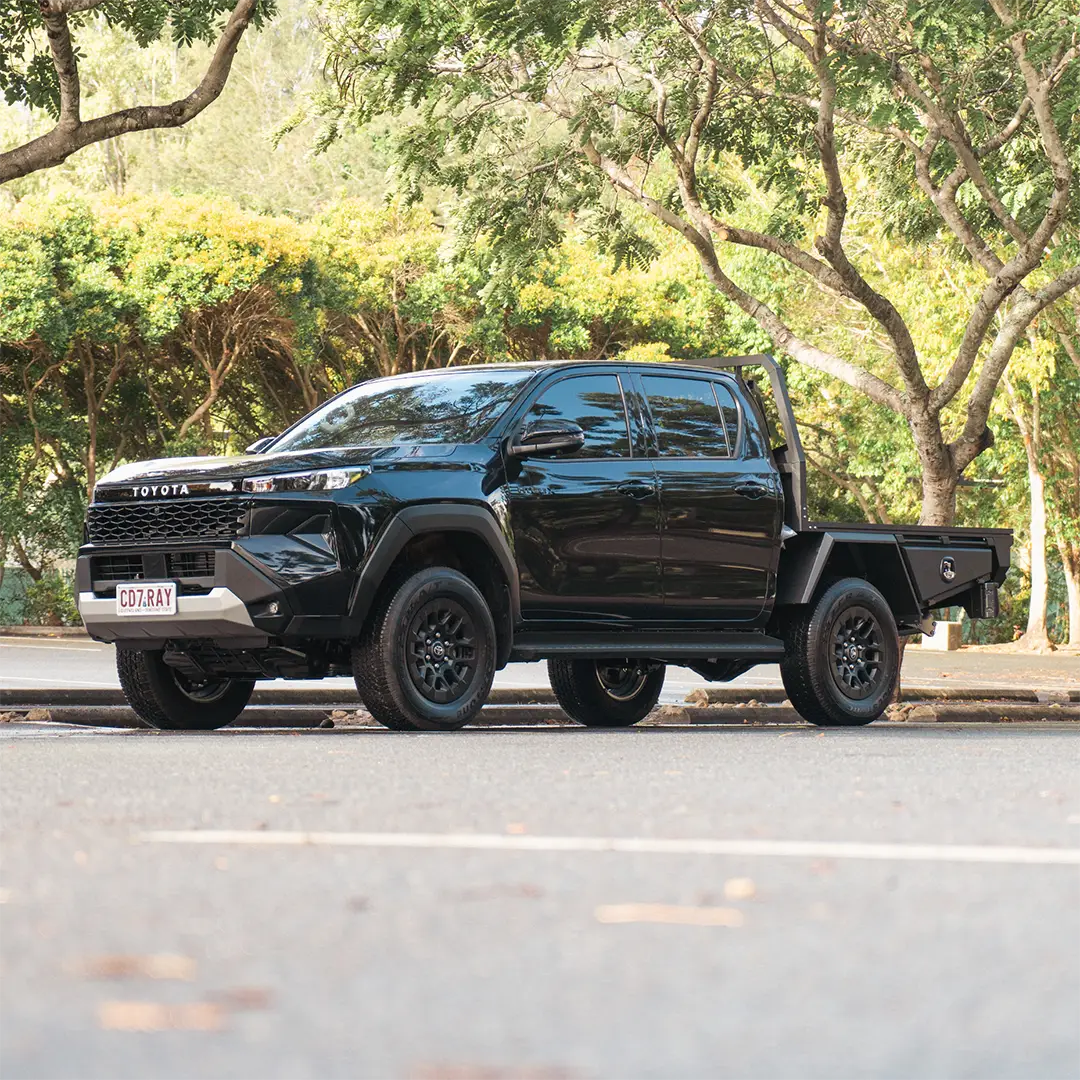

The CDI Base Series 1650 Aluminium Tray is designed for owners seeking a practical and well-proportioned setup for everyday work and recreational use.

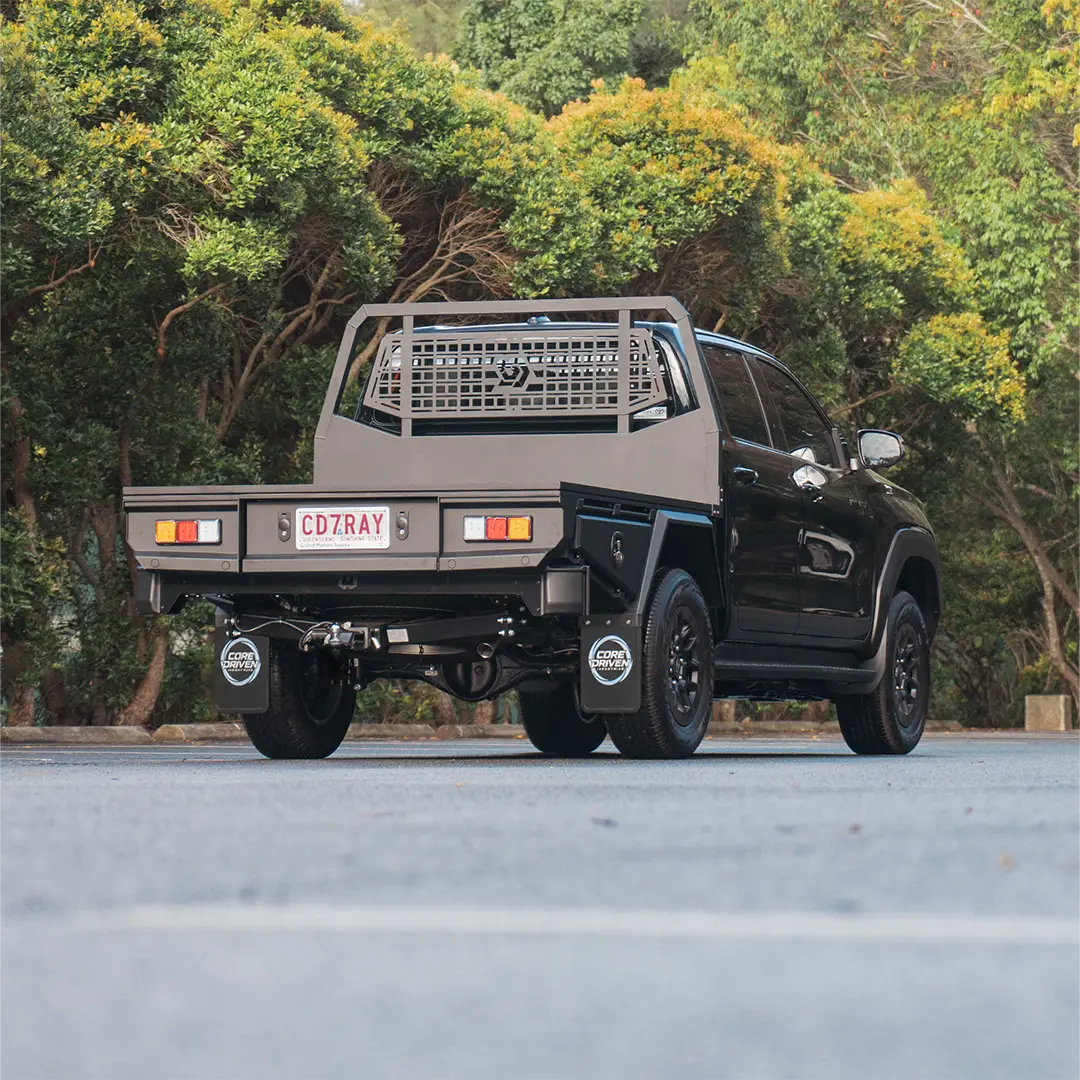

With a tray length closely matching the footprint of many factory tubs, the 1650 offers a compact appearance while minimising rear overhang behind the tow hitch area. This makes it particularly well suited to vehicles such as the Navara, D-MAX, Triton and Colorado, where maintaining balanced vehicle proportions is often preferred.
Built as a versatile foundation platform, the Base Series is compatible with all CDI Base Series Canopies and supports future upgrades including drop sides and rear rack systems.

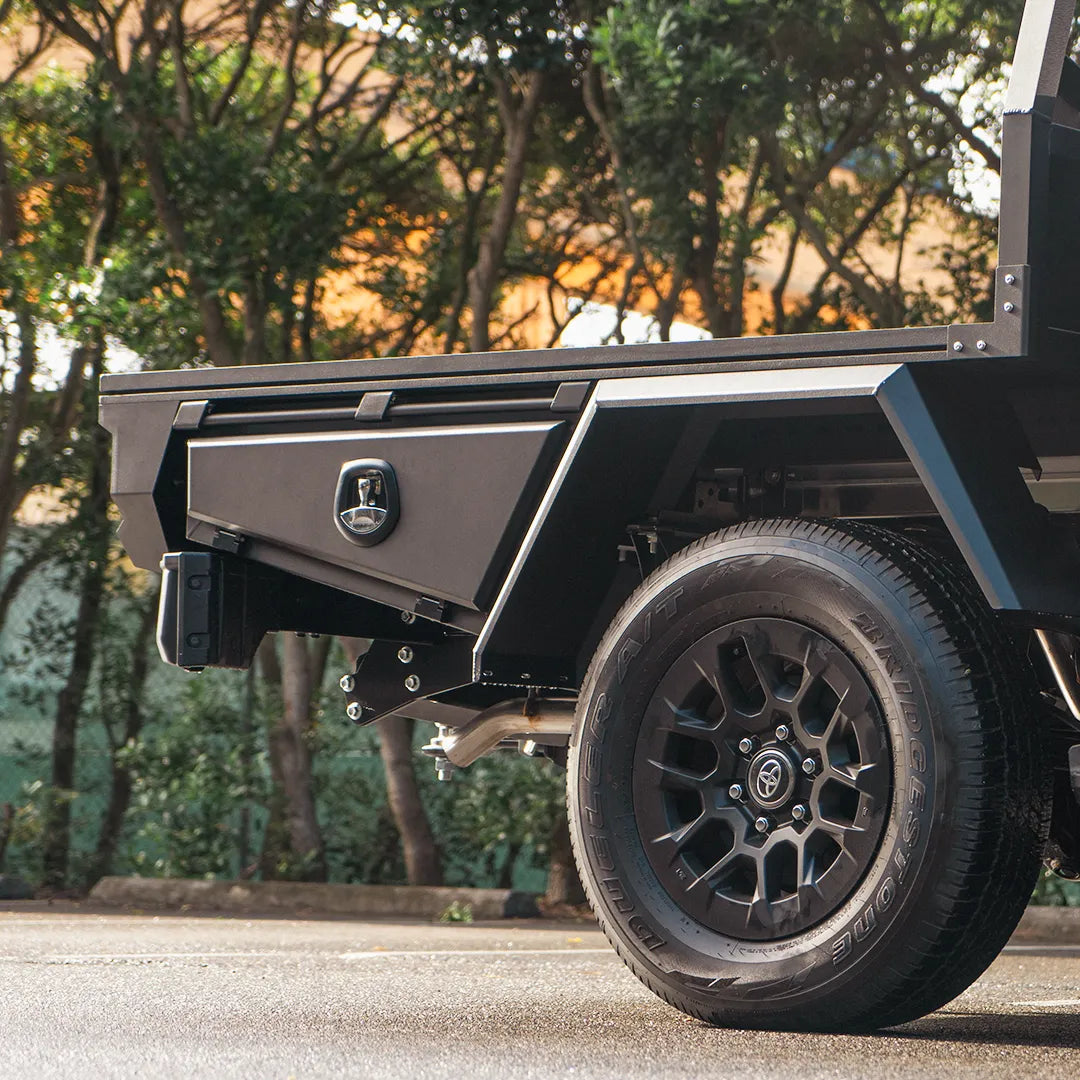

| Standard inclusions | Flat Pack Aluminium Tray Kit Headboard Assembly Tray Deck Underbody Toolboxes Tie-Down Rails Mudguards & Mudflaps Basic LED Tail Lights Mounting Brackets Fitting Kit (Bolts & Fasteners) |
|---|---|

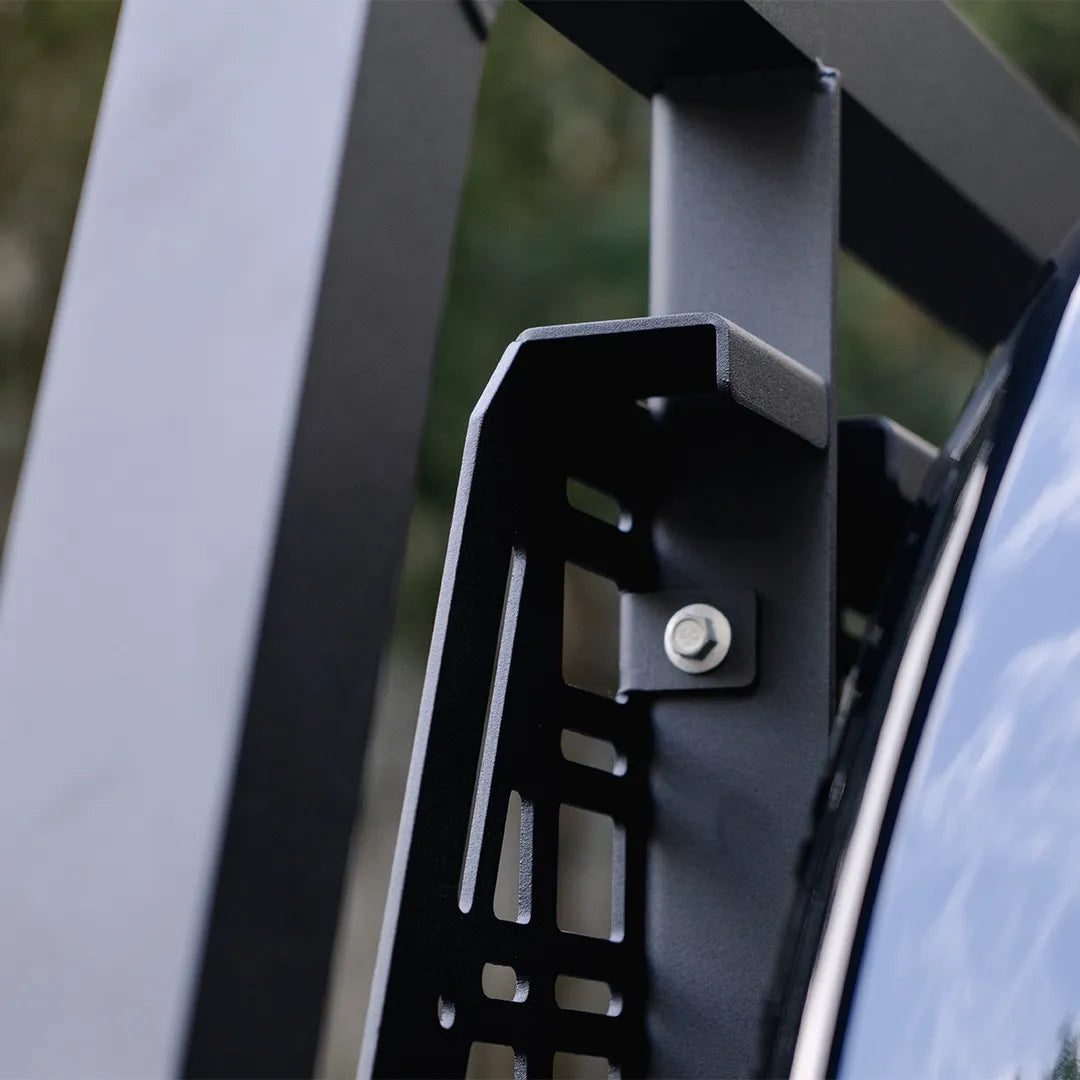

| Material | Molle Panel: 3mm 5052 Aluminium Headboard Frame: 50mm x 50mm 6061 Aluminium Tube Deck Edge Channels: 6061 Aluminium Extrusion Main Chassis Rails: 5mm 6061 Aluminium Extrusion Structural Reinforcement: 3mm 5052 Aluminium Plate Tray Deck: 3.5mm 5052 Aluminium Checker Plate Mounting Brackets: 4mm Stacked Steel |
| Weight | 142.0kg |
| External dimensions | Width: 1775mm Length: 1650mm Height: 900mm Usable Deck Length: 1600mm Headboard: 1775mm(W) x 850mm(H) x 50mm(L) |

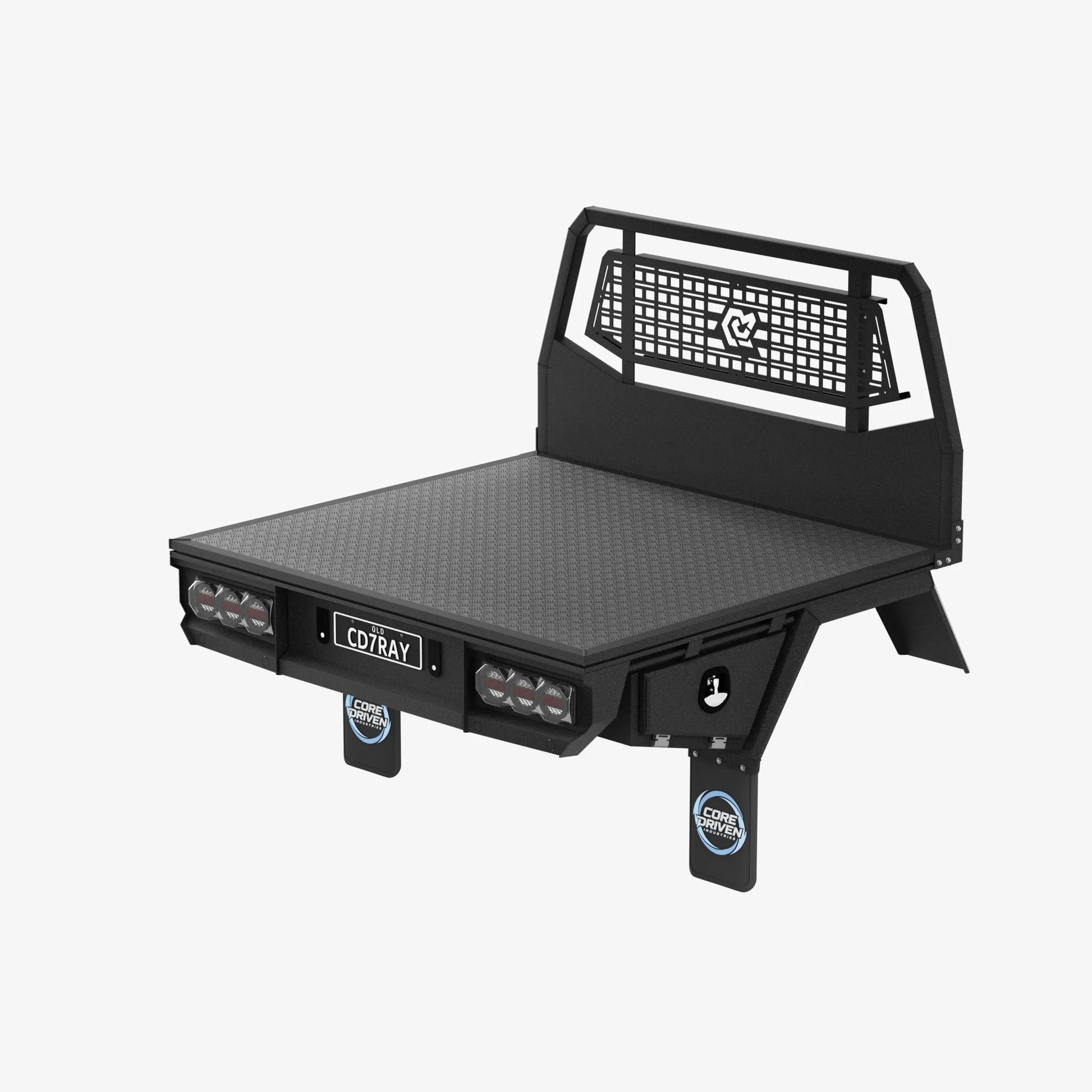

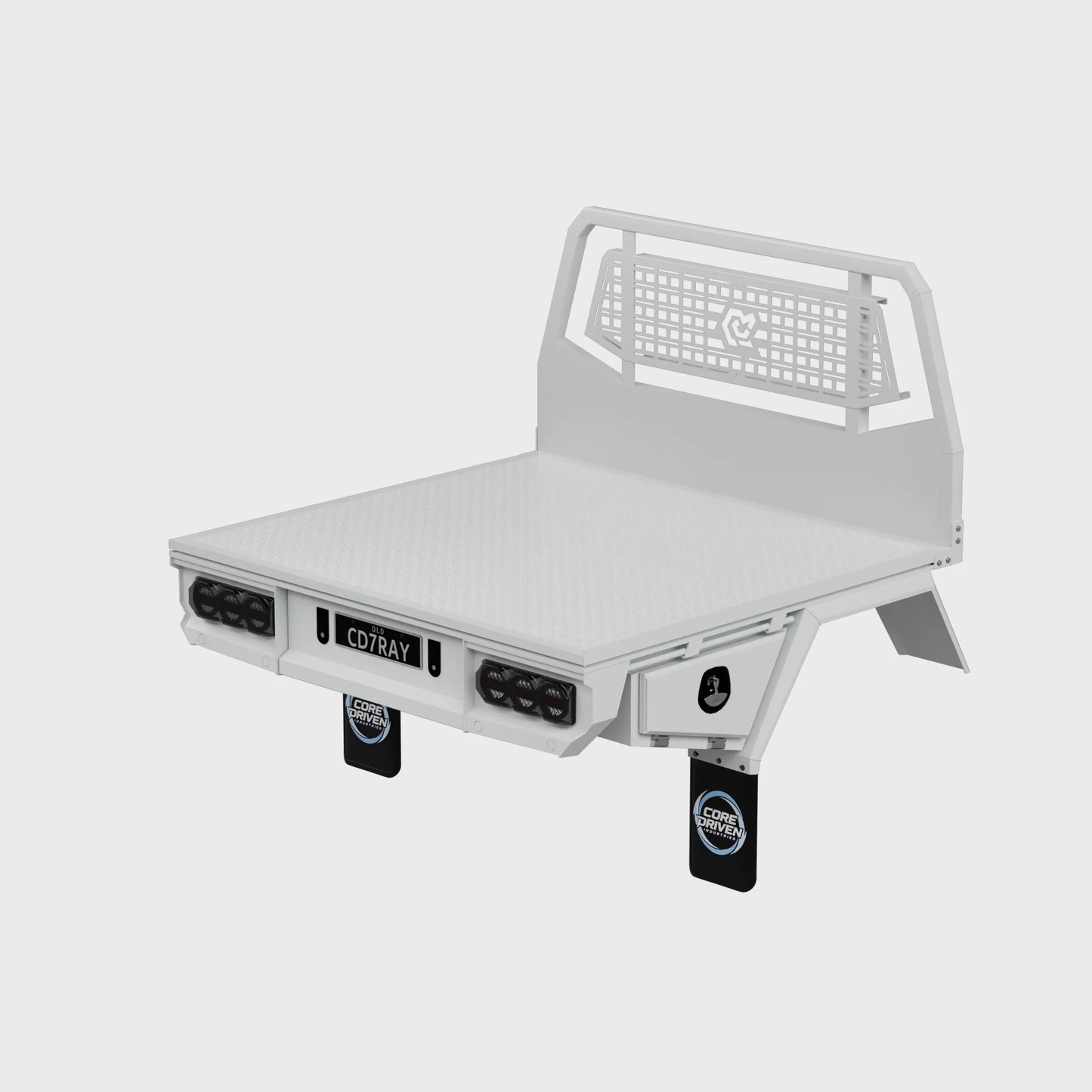

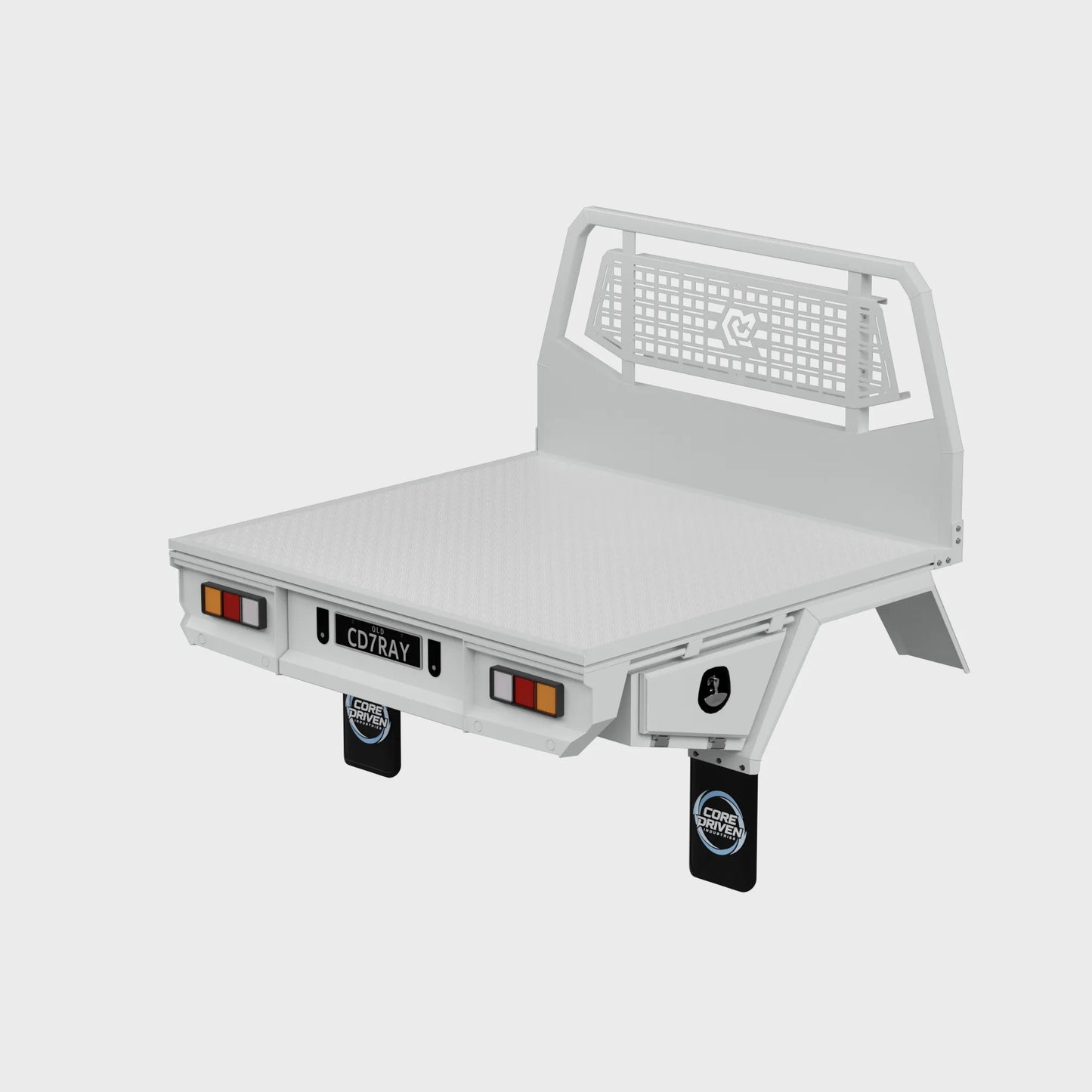

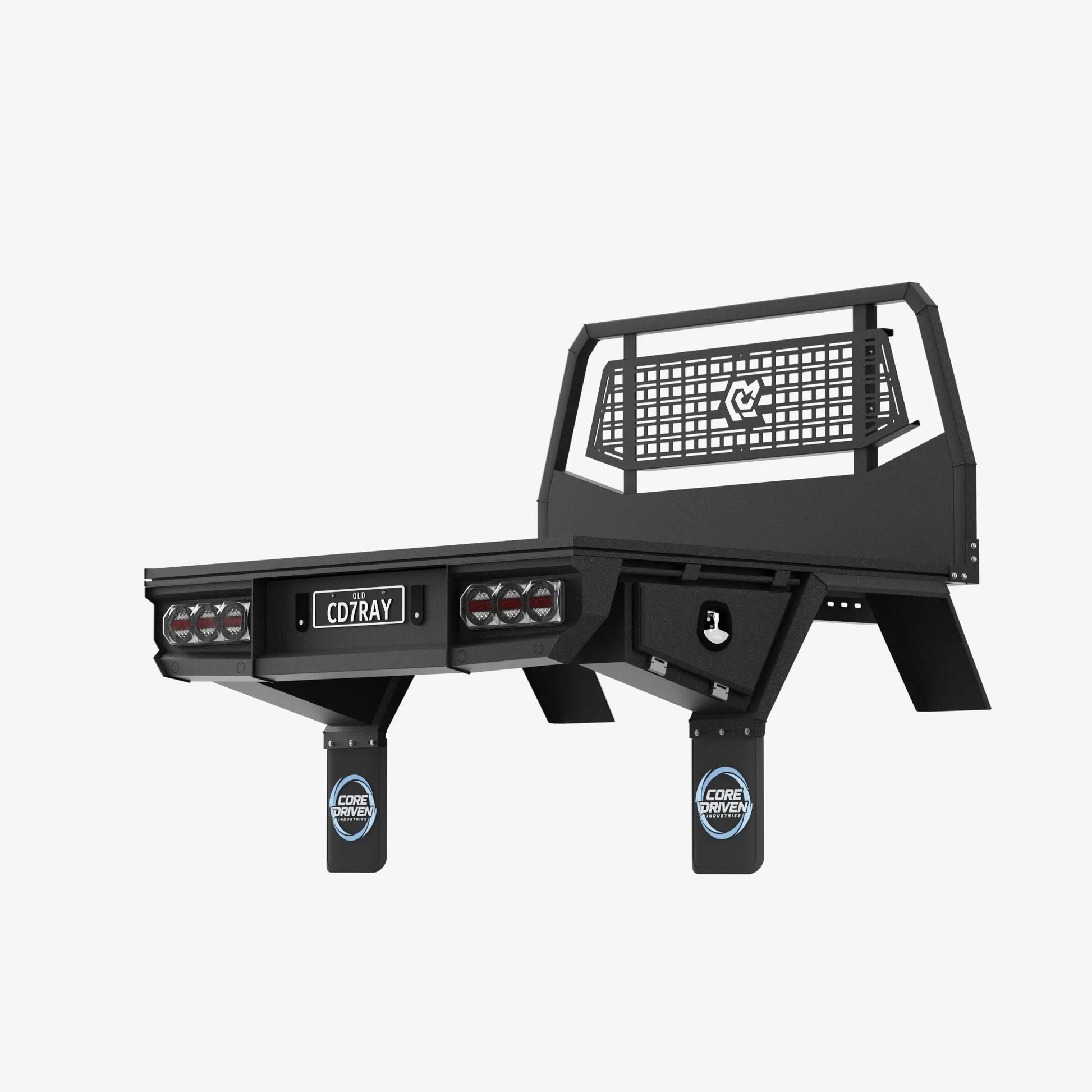

| Surface finish | Sahara Black/Splash White Powder Coating |
| Freight class | Class Bulk |
CDI 2-Year Structural Warranty
