The CDI LC79 Factory Tray Canopy 1600mm is purpose-built for the Toyota LandCruiser 79 Series factory steel tray, delivering a more integrated appearance than traditional universal-fit canopies.
Designed around the geometry of the OEM tray, the recessed T-body structure follows the factory tray profile while the double-taper roof transitions naturally from the original headboard, creating a cleaner and more factory-inspired finish.
Inside, a raised false floor and integrated C-channel system provide a practical foundation for drawers, slides and internal storage solutions while reducing the need for additional drilling.
Compatible with standard 40×40 jack-off legs and secured by a three-point whale-tail locking system, the LC79 Factory Tray Canopy combines everyday usability with a factory-focused design approach.
| Standard inclusions | Canopy Body 2 Keys per Lock Set M8 Long Mounting Bolts & Nuts M8 Washers |
|---|---|
| Material | Canopy Panels: 2.5mm 5052 Aluminium Flat Plate Internal Frame: 41-38C 6061 Aluminium Extrusion Perimeter Frame: 38mm x 38mm 6061 Aluminium Tube |
| Weight | 148.0kg |
| External dimensions | Width: 1840mm Length: 1600mm Height: 1000mm Entry Width: 1384mm Entry Height: 825mm |
| Internal dimensions | Internal Height: 807mm (floor to top channel) |

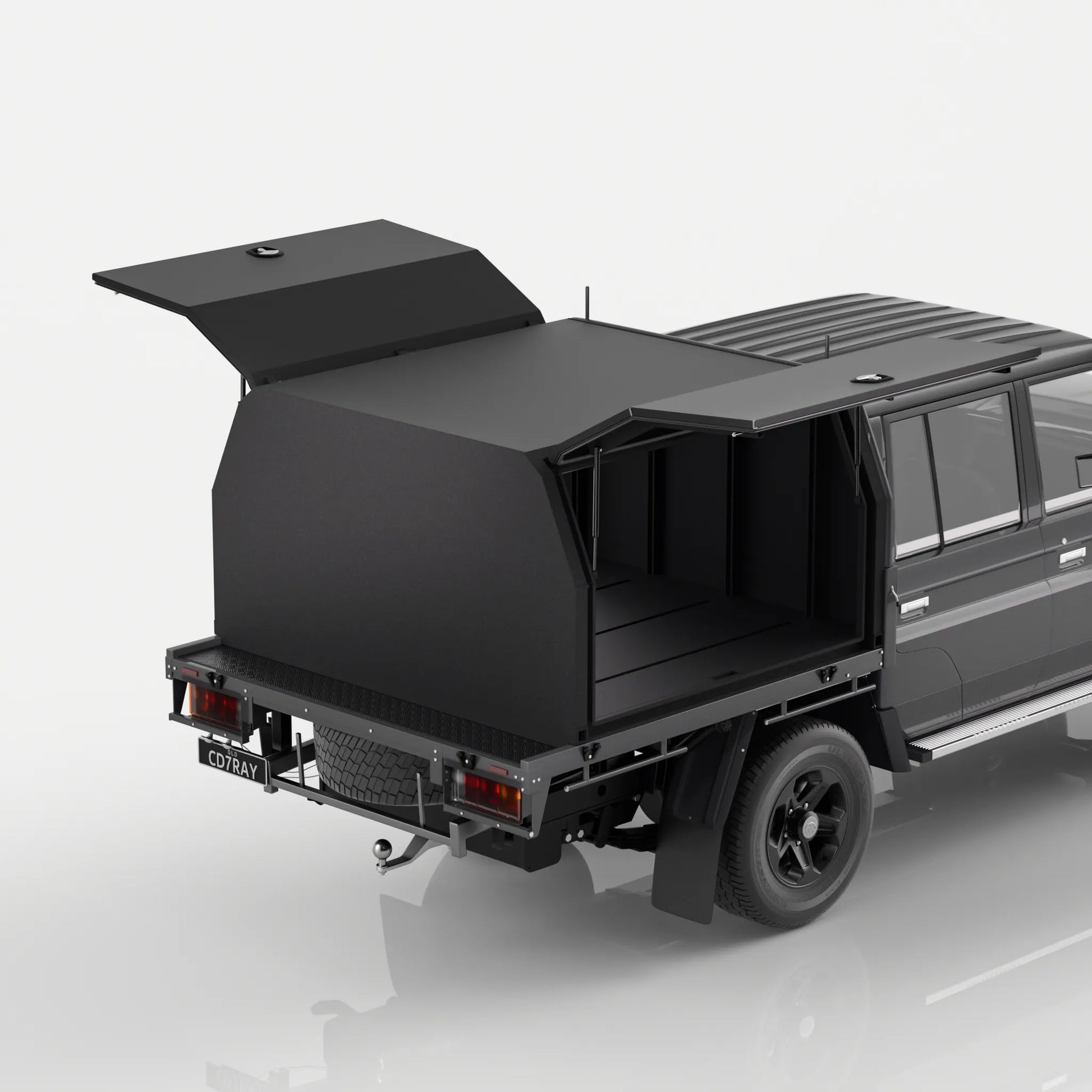

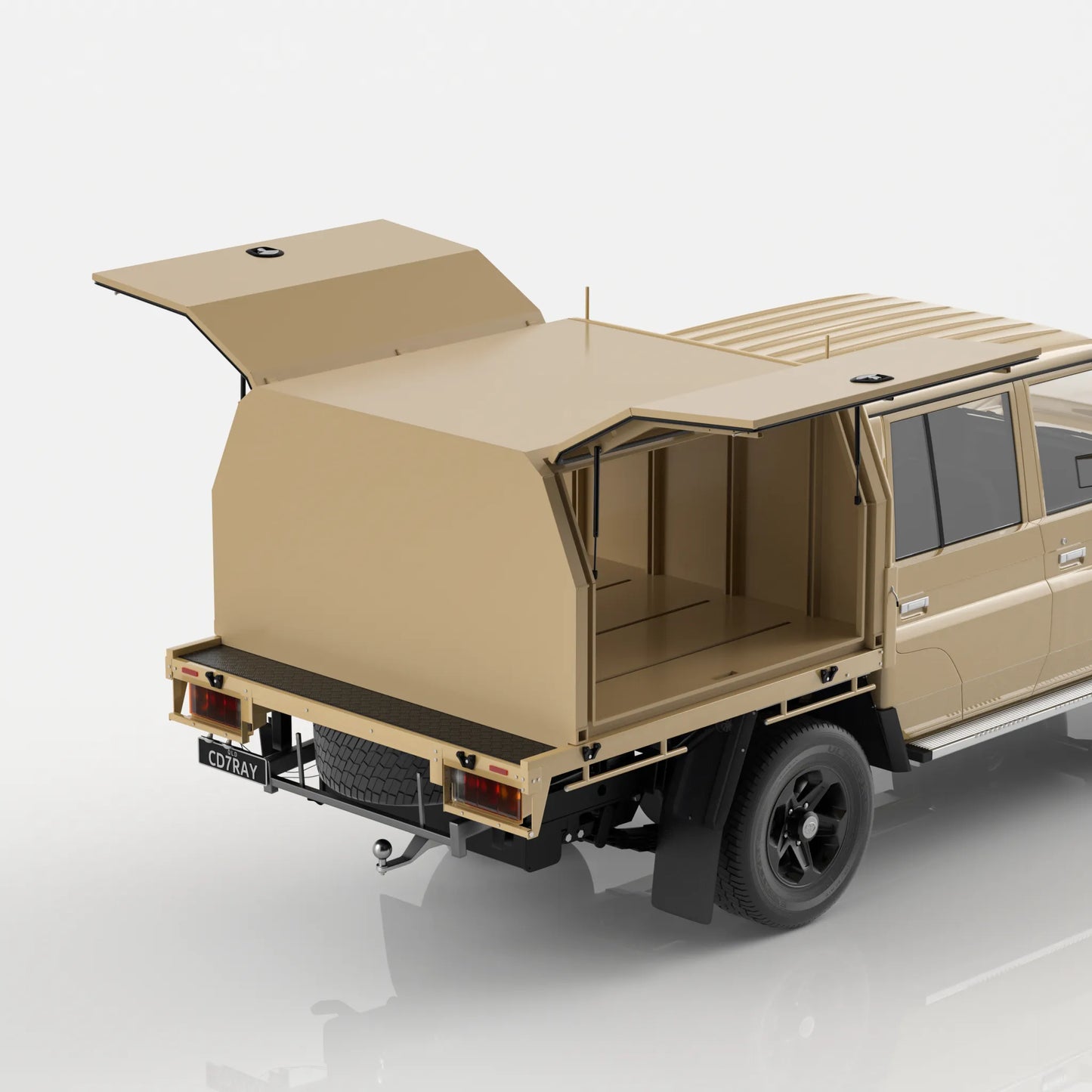

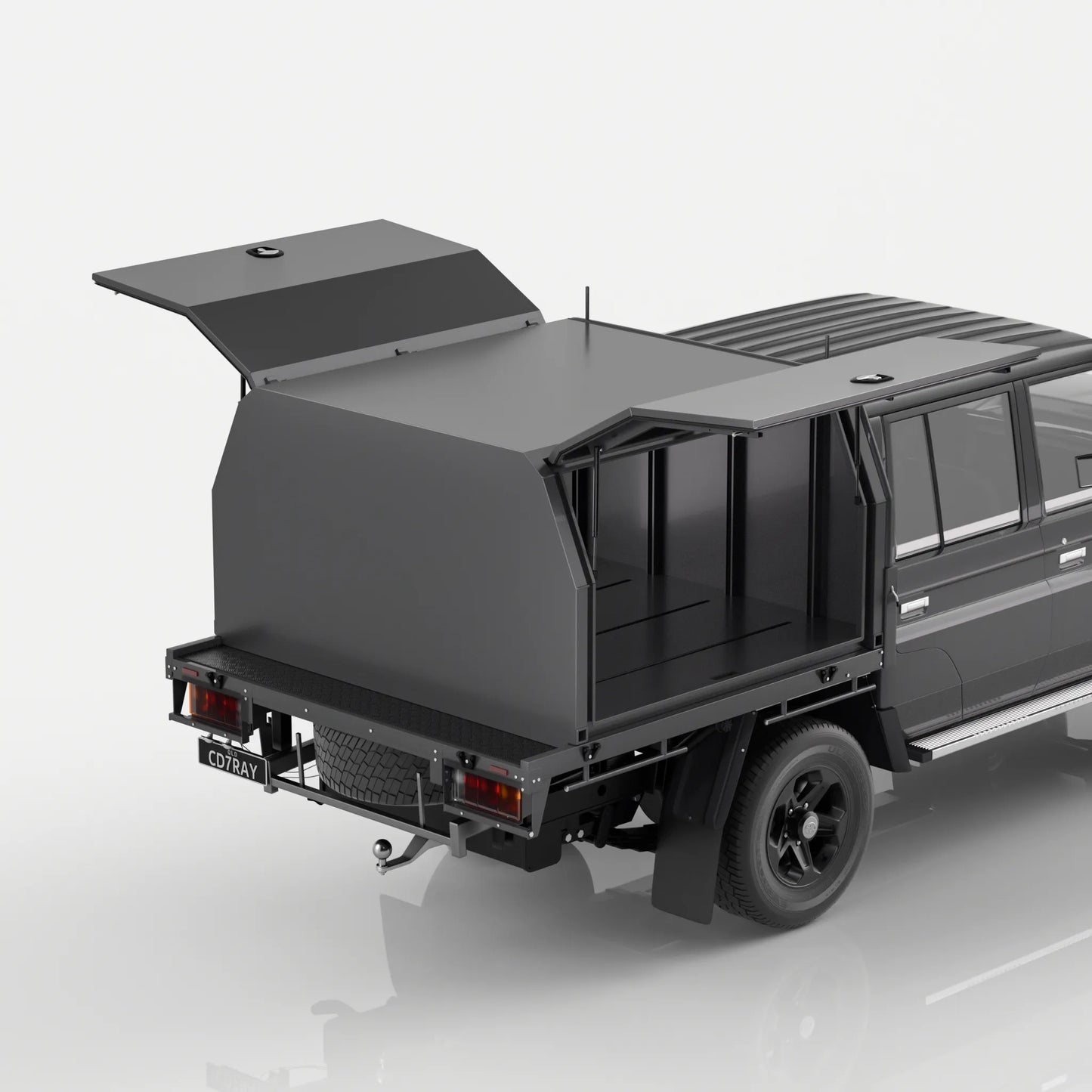

| Surface finish | Sahara Black/Sandy Taupe/Graphite Powder Coating |
| Freight class | Class Bulk |
